1. The Reality of Wide-Format Tape Application

Running tape on a narrow product is straightforward. Doing it on a wide substrate is a completely different mechanical challenge. As materials get wider, keeping the tape aligned and the pressure consistent requires a frame built specifically for that scale.

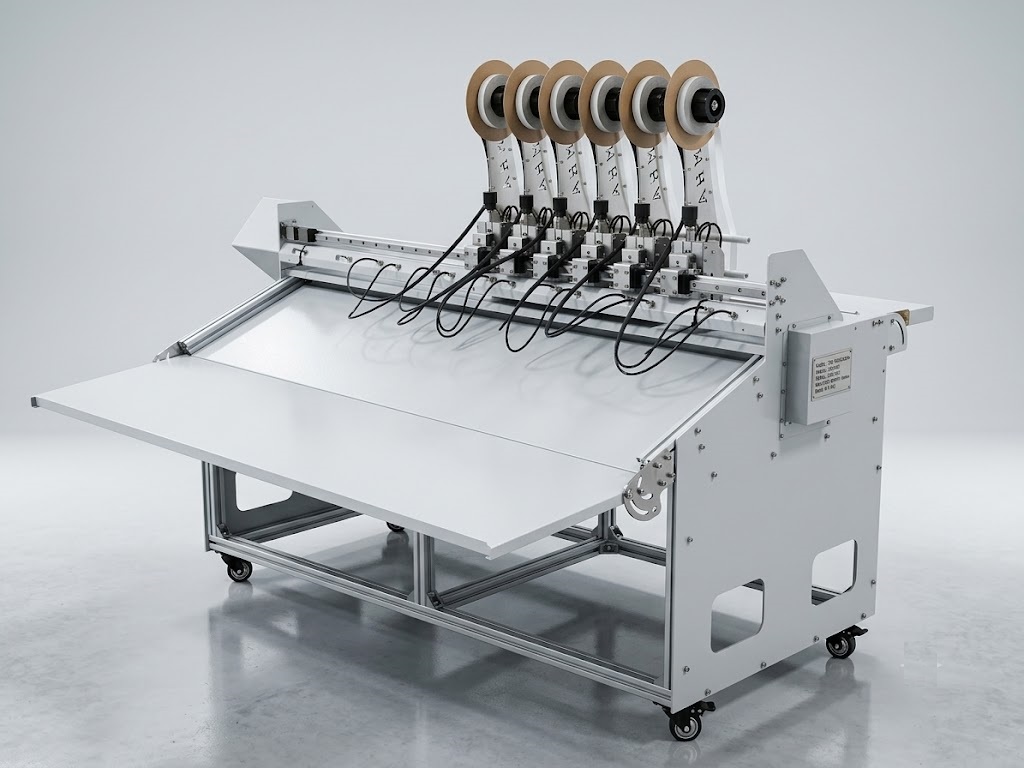

You can't force wide products through a standard tape applicator machine without running into buckling, misalignment, or bottlenecked production. That’s exactly where the DMHA-1800 fits in. It’s a dedicated double sided tape applicator machine engineered explicitly for the gap between standard processing and wide formats—handling product widths spanning from 90 mm up to 1800 mm. No forcing it; just the mechanical clearance your materials actually need.

2. What Width Can a Double Sided Tape Applicator Machine Actually Handle?

Equipment capacity is a hard limit on the production floor. A wide product tape applicator either accommodates your substrate or it doesn't.

With the DMHA-1800, you aren't locked into a single product line. Because the machine supports a feed width anywhere from 90 mm to 1800 mm, the same equipment processing a narrow component in the morning can handle a massive wide-format run in the afternoon. You just adjust to the materials you need to run that day.

3. Substrate and Material Compatibility

A machine is only as good as its ability to grip and process your specific materials. The DMHA-1800 isn't built to tape everything under the sun—it’s specced for a very specific range of substrates.

Based on the engineering, it reliably processes standard flexible materials like envelopes and A4 paper. On the heavier end, it accommodates carton boxes and rigid PVC material. But regardless of what you’re feeding through it, there is a hard, non-negotiable physical limit: the material cannot exceed 50 mm in thickness. If your substrate clears that 50 mm hurdle, the machine can handle the feed.

4. Speed and Operational Limits

Machine speed dictates your line's workflow. The DMHA-1800 operates at a fixed 32 m/min. It’s a consistent, steady-state pace that you can actually use to calculate your shift's output and map against your downstream processing.

Additionally, the equipment is rated for a maximum of 8 spots in line. When planning your production setup, you'll need to align this specific application parameter directly with how your tape needs to be positioned on the board or box.

5. Core Specifications: DMHA-1800

Here are the exact numbers you need to clear before putting this on your floor:

🌱Model: DMHA-1800

🌱Product width: 90–1800 mm

🌱Machine speed: 32 m/min

🌱Maximum material thickness: 50 mm

🌱Max spot in line: 8

🌱Internal diameter roll tape: 76 mm

🌱Warranty: 12 months

6. Sizing Up Your Application (A Buyer's Checklist)

Don't guess on equipment sizing. Before pulling the trigger on an industrial tape applicator, cross-reference your daily runs against these hard constraints:

🌐 Width limits: Does your absolute widest product fall safely under the 1800 mm mark?

🌐 Thickness clearance: Is your thickest carton or PVC strictly under 50 mm?

🌐 Tape compatibility: Do your current tape rolls fit a standard 76 mm internal diameter spindle?

🌐 Speed alignment: Does 32 m/min match—or bottleneck—your expected production flow?

🌐 Material match: Are you strictly running paper, carton, envelopes, or PVC?

🌐 Facility power: Can your local grid supply 110–220V at 50Hz for a 0.75 kW draw?

7. Is the DMHA-1800 the Right Fit?

It all comes down to the dimensions on your spec sheet. If you are looking for a double sided tape application machine to process envelopes, paper, carton, or PVC—specifically between 90 and 1800 mm wide and under 50 mm thick—this machine fits the bill. It isn't trying to do everything; it’s just built to do this specific job reliably.

8. Next Steps

Stop struggling with equipment that isn't sized for your materials. If your production requires applying tape to wide formats, compare your daily dimensions against the DMHA-1800.

Contact DAAP directly with your specific product dimensions, material types, and tape specifications to confirm if this machine is the right mechanical fit for your facility.
