The term "wax sealing" is probably familiar to everyone. As consumers increasingly value the quality of red wine, white liquor, and various bottled products, wax sealing and stamping have become powerful tools for enhancing product value. If you're still doing manual wax sealing and worrying about uneven wax thickness, dripping, or cracking, then this article will be very helpful to you!
When consulting about wax sealing equipment, many customers are most concerned about two questions: Can my bottles be sealed? And will the seal look good? To address these concerns, we have conducted on-machine tests using various common bottle types, capturing real-time footage of the automatic wax sealing machine's performance to clearly demonstrate the equipment's compatibility and stability.

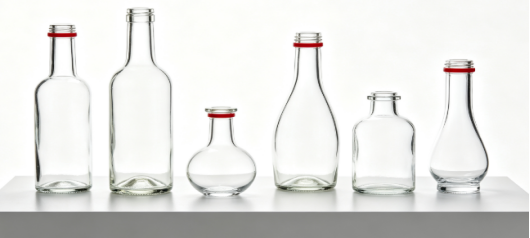

Our wax sealing machines are capable of sealing glass bottles of various diameters and with different bottle shapes, including straight bottles, sloping shoulder bottles, and bottles with irregular bottle mouths. We also offer standard-sized bottles in various sizes. If your bottle size is not standard, we can customize it according to your requirements! From small sample bottles to large storage bottles, the entire process can be completed: conveying, flipping for wax application, air cooling for shaping, stamping with labels, and water cooling.
| Specification | |
| Applicable bottle diameter | Φ75 - Φ100mm (customizable upon request) |
| Applicable bottle height | 260 - 360mm (customizable upon request) |
| Sealing wax height | 20 - 60mm (related to the bottle shape, customizable upon request) |

![]()

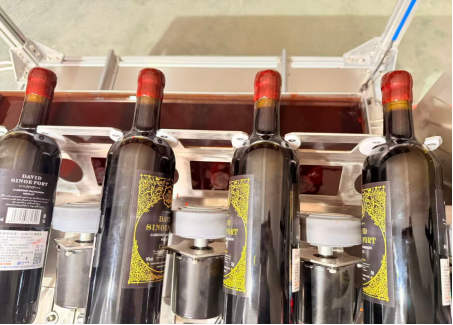

The equipment uses adjustable positioning fixtures that can be adapted to different bottle neck diameters. The depth of wax immersion, the duration of wax immersion, and the temperature of the wax solution can all be precisely set on the electric control panel to control the thickness of the wax layer. After wax sealing is completed, the bottle is rapidly cooled and shaped by the air cooling device. The wax film uniformly covers the bottle neck, with smooth and round edges, and is unlikely to have break points, bubbles, or overflow of wax flow. This saves a lot of manpower and material resources for your production and improves production capacity!
Compared with traditional manual wax sealing, machine wax sealing has higher consistency. The height and thickness of wax sealing for each bottle are basically uniform and are not affected by the operator's proficiency. It is suitable for batch production. No long-term training is required. The operation is simple and easy to master. Small and large batch orders can also be flexibly handled.
Whether it is wine bottles, honey bottles, sauce bottles, medicine bottles or other glass bottles that need to be sealed and decorated, you can send them to us for free sample testing. We will adjust the machine parameters according to your bottle size, wax material type, and process requirements, record sample videos, and assess the wax sealing effect in advance to reduce the trial and error cost of equipment procurement.
If you have bottles that need wax sealing samples or want to know the equipment's production capacity and technical parameters, please feel free to contact us at any time.
