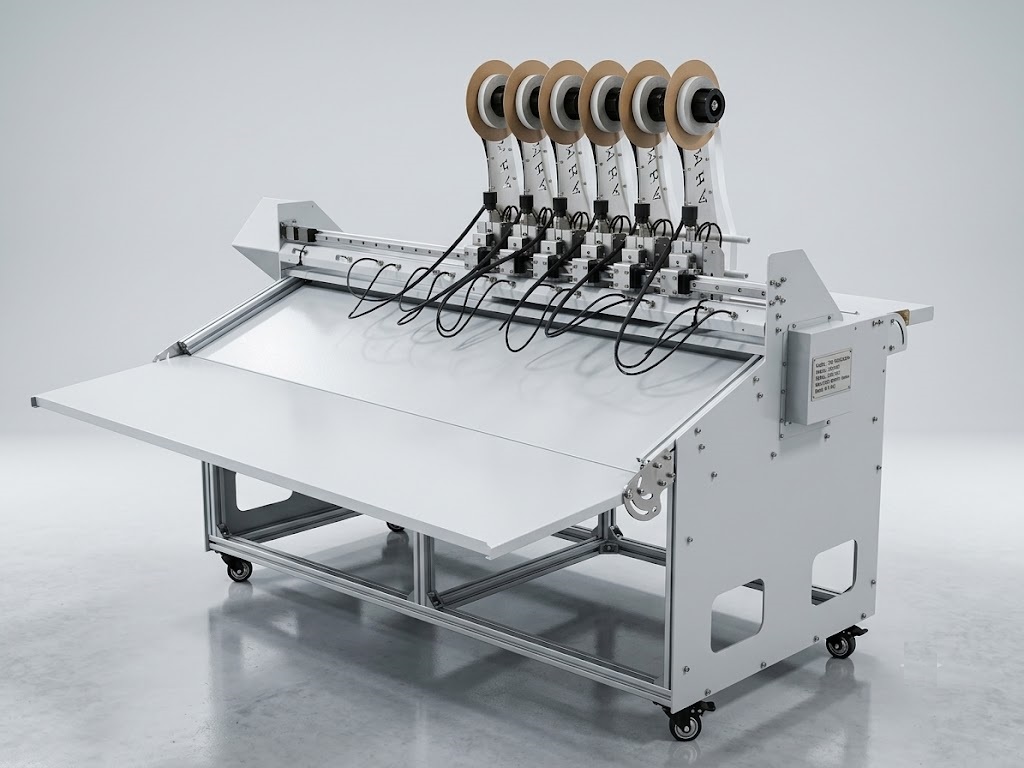

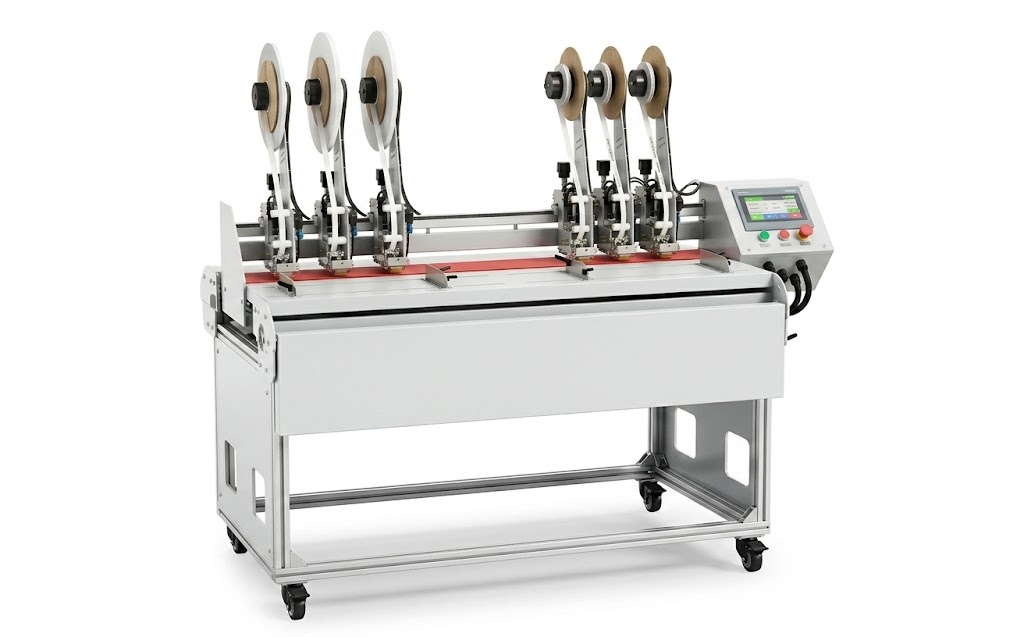

DMHA-1800 Double Sided Tape Applicator Machine
Model: DMHA-1800
Power: 0.75kW
Product width: 90-1800mm
Machine speed : 32m/min
PLC Language: English,Spanish,Russia
Electrical need: 110-220V 50HZ
Material: Envelope ,A4 paper ,carton box ,PVC material
Max material thickness: 50mm
Max spot in line:8
Dimension:1680x1300x1550mm (L x W x H)
Warranty:12Months
Internal diameter roll tape: 76mm
Product Overview
Streamline your finishing process with the DMHA-1800 Double Sided Tape Applicator Machine. Engineered specifically for large-format materials, this robust and high-precision machine automates the tedious task of manual tape application. With a versatile working width ranging from 90mm to 1800mm, it is the ultimate solution for print shops, packaging manufacturers, and sign makers looking to boost productivity and reduce labor costs.
Feed Material：Compatible with formats from 90mm up to 1800mm
Place your large-format posters, corrugated boards, or signs onto the automatic or manual feeding section.
Precision Taping：Applies double-sided tape accurately at high speeds
The heavy-duty tape heads apply the exact length of double-sided tape to the programmed positions.
Delivery & Delivery：Neat stacking for immediate next-stage processing
The finished products are neatly delivered, ready for folding, shipping, or immediate installation.
Key Features
Extra-Wide Capacity (90mm - 1800mm): Specially designed for large-format media. Whether you are running small structural flaps or massive oversized banners, this machine handles the full spectrum with ease.
High-Speed & Precision Automation: Replaces slow manual labor with consistent, blisteringly fast tape application. Eliminates human error, skipped spots, and wasted tape, ensuring a flawless bond every time.
Industrial-Grade Reliability: Built with high-quality components to withstand continuous, heavy-duty production environments. The DMHA-1800 delivers smooth operation even during peak 24/7 printing seasons.
User-Friendly Programming & Quick Setup: Features an intuitive control panel that allows operators to set tape lengths and positions in seconds. Job changeovers are fast, keeping your downtime to an absolute minimum.
Multi-Tape Head Compatibility: Supports the installation of multiple tape heads to apply parallel strips of double-sided tape in a single pass, multiplying your throughput instantly.
Specification
Specification | |||
Model | DMHA-1800 | Min distance between application and the next | 25mm |
Max product width | 90-1800mm | Internal diameter roll tape | 76mm |
Machine speed | 32m/min | Tape width | 5mm to 30mm |
PLC Language | English, Spanish,Russia | Tape applicator/taping head | 1,2,3,4,5,6,7,8 |
Electrical need | 110-220V,50HZ | Minimum Product Thickness | 100GSM |
Material | Posters, Envelope ,A4 paper ,carton box ,PVC material | Weight | 230kg |
Max material thickness | 50mm | Dimension | 2200x1300x1680mm (L x W x H) |
Max number of spots in line | 4 | Warranty | 12 Months |
Min tape length | 35mm | Driven type | Pneumatic |
For Your Benefits
Maximize Your Workspace
Adapt Instantly to Changing Workflows
Reduce Labor Costs
Achieve Maximum ROI
Perfect for Startups & Labs
Versatile Applications of DAAP DMHA-1800
Broad Industry Compatibility:
Packaging
Advertising
Commercial printing
Construction
Interior decoration industries

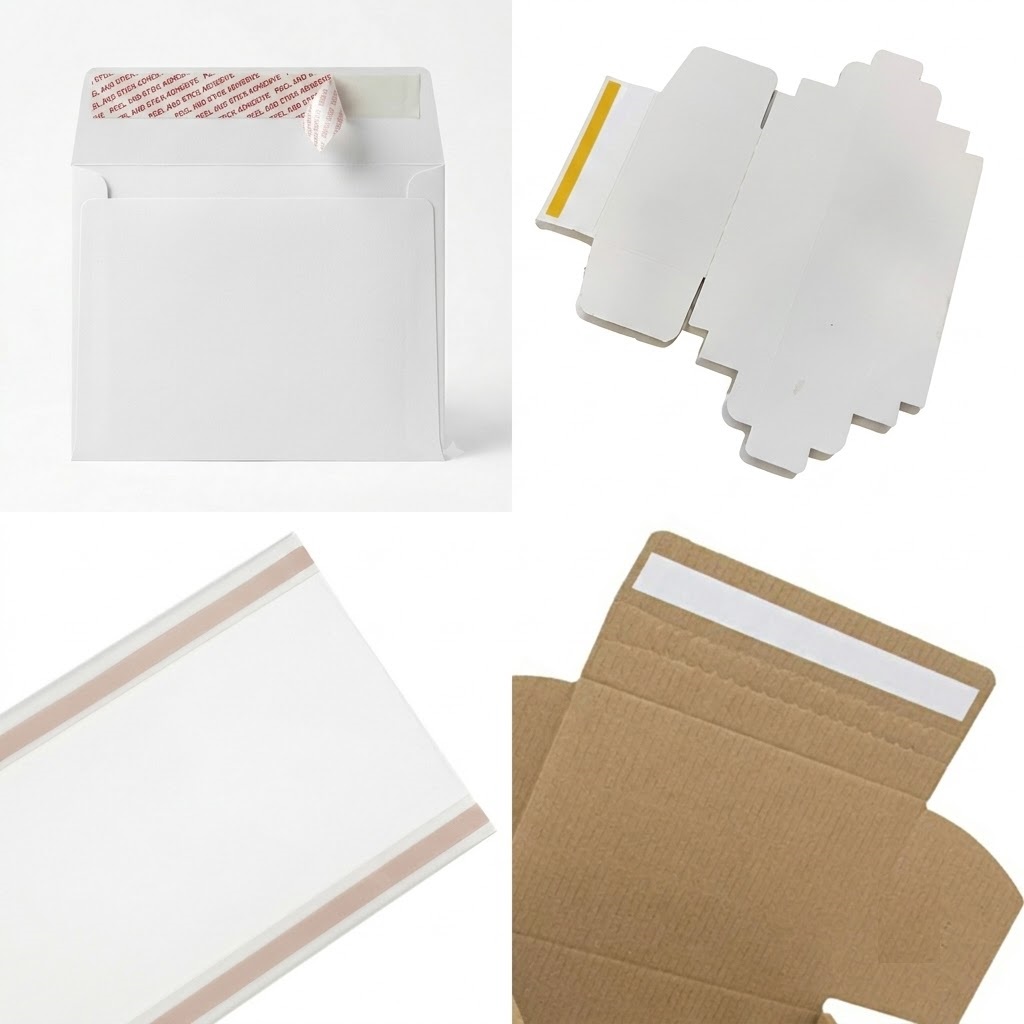

Diverse Material Handling:
Expertly applies double-sided, sealing, and PVC tapes to a wide range of surfaces, including:
Posters
Envelopes
A4 paper
Cardboard boxes
PVC sheets
Decorative materials

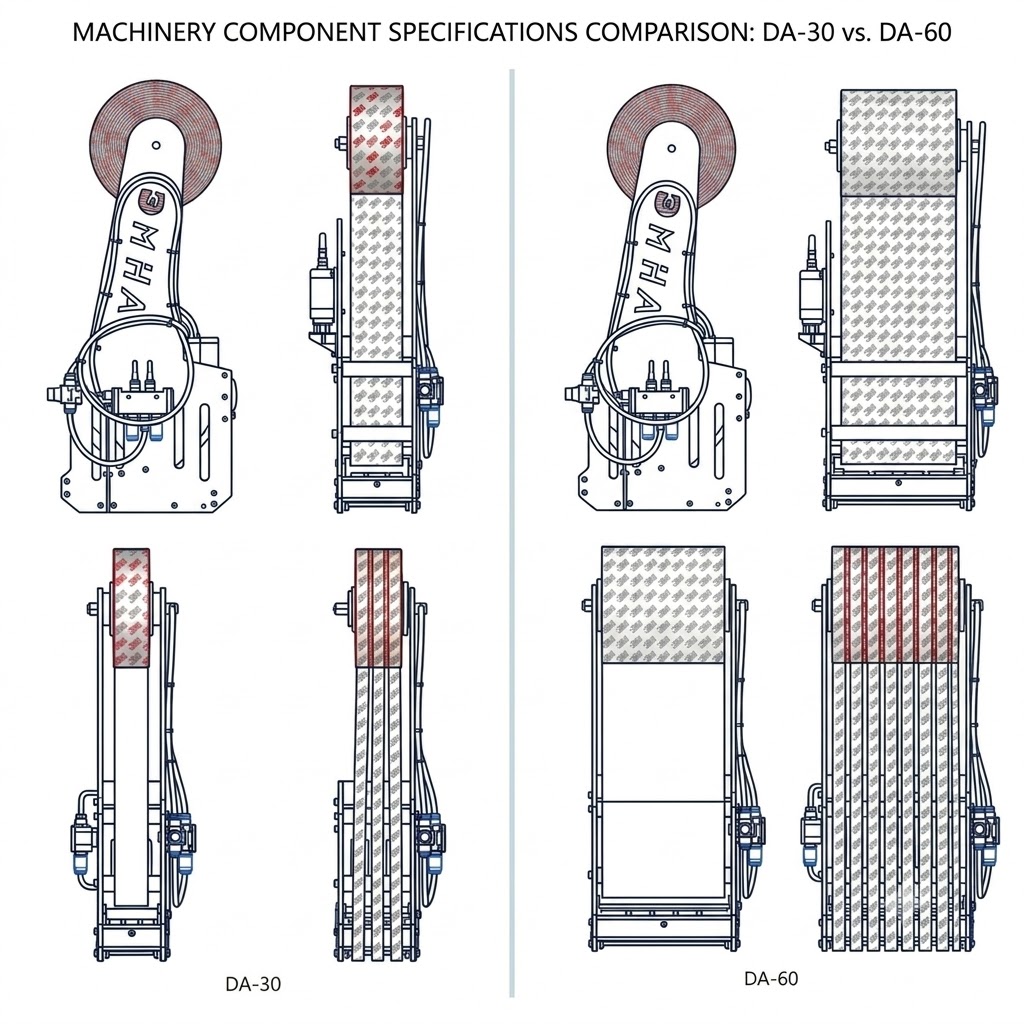

Taping Head Options/ Sizes
Specifications | DA-30 | DA-60 |
Tape Width Range | 5mm--33mm | 10mm--60mm |
Best Suited For | Narrow to medium tape applications | |
Application Environment | Automated production & packaging | |
Customizing tape applicator machine for Your Needs
Our tape applicator machine is designed to maximize simplicity in installation, operation, maintenance, and customization. Unlike conventional tape application equipment, DMHA-1800 features a touch-screen PLC for tape length settings and cutting, ensuring easy installation and straightforward future operation and maintenance. We can assist in assembling a model tailored to your specific requirements based on your specifications.
DAAP semi automatic double side tape applicator machines have many outstanding features to provide you with services.
Mounting Options: We offer various mounting options such as Desktop, floor-standing, providing flexibility in installation to suit different spatial constraints and preferences.
Cable Management: Built-in cable management features such as cable entry glands, cable trays, and cable tie mounts help organize and secure wiring inside the enclosure, reducing clutter and minimizing the risk of cable damage.
Locking Mechanisms: The machine's casters can be locked to freely move the equipment to the desired location, then secured to ensure stability and safety.
Flexible Integration: DMHA-1800 can be flexibly integrated with various devices, such as conveyor belts, double-sided tape head, easy-tear tape head, box gluing machine, or custom components, among others.

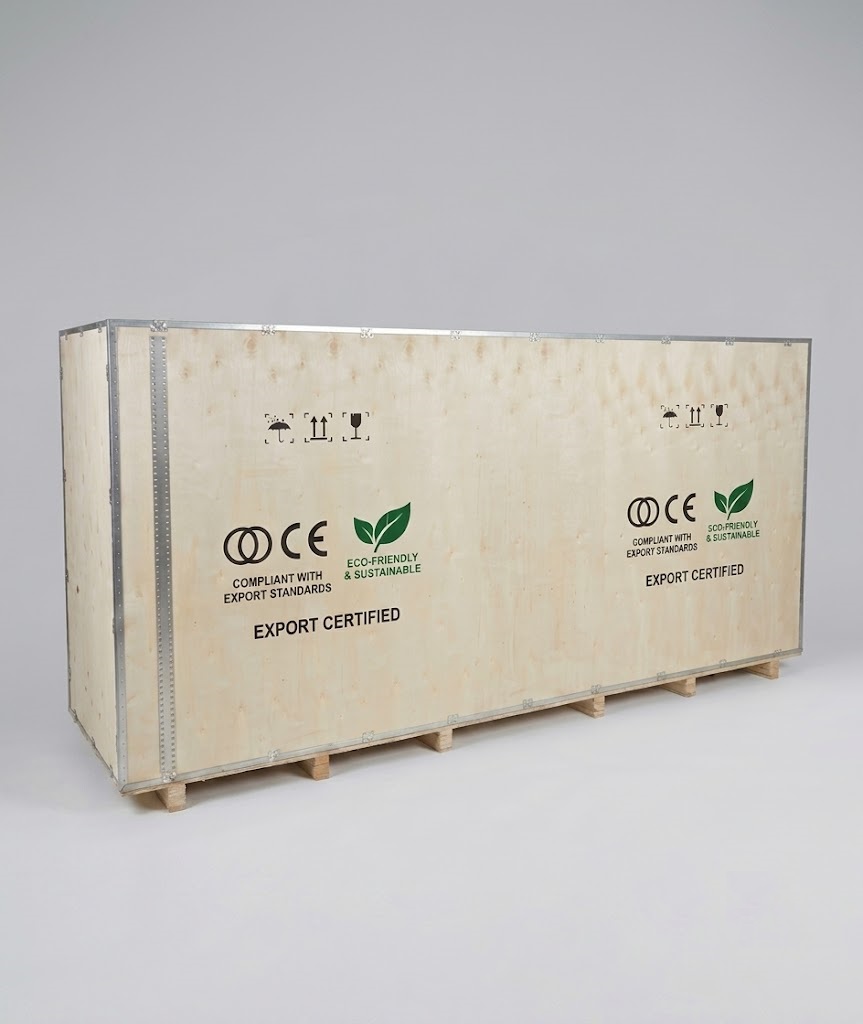

About Packaging
🌐 100% Export Certified & CE Compliant
Fully CE compliant and clearly marked for global export, our packaging guarantees a smooth, delay-free customs clearance process wherever your facility is located.
🛡️ Maximum Structural Protection
Your equipment is packed in heavy-duty wooden crates with metal edges to guarantee it survives rough sea or air transport without a scratch. Plus, the built-in pallet bases make forklift unloading at your facility fast, safe, and easy.
🌱 Eco-Friendly & Sustainable
We are committed to reducing our environmental footprint. Our robust crates are constructed from responsibly sourced, eco-friendly materials that are fully sustainable without compromising on heavy-duty protective strength.
☔ Weatherproof & Carefully Handled
Clearly labeled with international handling icons (Keep Dry, This Way Up, Fragile), the packaging instructs logistics handlers worldwide to treat your investment with the utmost care, ensuring protection against moisture and mishandling.
