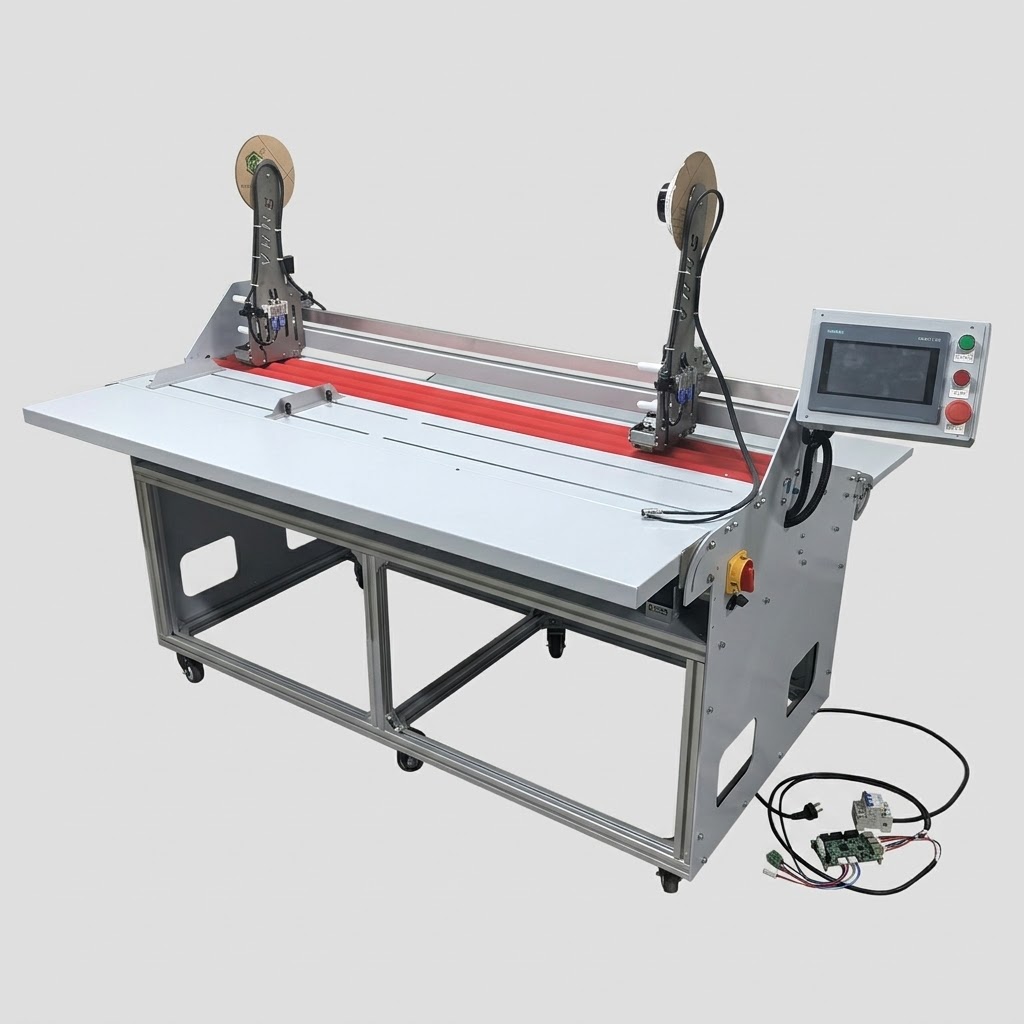

DMHA-1650 Double Sided Tape Applying Machine
Max product width; 90-1600mm
Machine speed: 32m/min
PLC Language: English, Spanish,Russia
Electrical need: 110-220V,50HZ
Material: Envelope ,A4 paper ,carton box ,PVC material
Max material thickness:20mm
Max number of spots in line:4
Min tape length: 35mm
Min distance between application and the next: 25mm
Internal diameter roll tape: 76mm
Tape width: 5mm up to 33mm
Tape applicator/taping head: 1,2,3,4,5,6,7,8
Minimum Product Thickness: 100GSM
Weight: 270kg
Dimension: 1900x1300x1550mm (L x W x H)
Warranty: 12 Months
Are you looking to eliminate the bottleneck of manual tape application in your production line? The DMHA-1650 Double Sided Tape Applying Machine is engineered to deliver high-speed, precision taping for a wide variety of materials. Whether you are processing paper envelopes, corrugated carton boxes, or rigid PVC materials, this tape applicator machine guarantees flawless execution, reducing labor costs and significantly boosting your daily output.
Why Choose the DMHA-1650 Tape Applicator?
Designed with modern packaging and printing demands in mind, the DMHA-1650 stands out as a versatile and reliable solution for global manufacturers.
⚙️Unmatched Speed & Efficiency: Operating at an impressive machine speed of 32m/min, this double sided tape dispenser ensures your production line never slows down.
⚙️Highly Customizable Configuration: Equipped to handle anywhere from 1 to 8 taping heads (applicators), you can apply multiple tape strips simultaneously. It supports up to 4 spots in a single line, making it perfect for complex packaging designs.
⚙️Broad Material Compatibility: From delicate 100GSM A4 paper to heavy-duty carton boxes and PVC materials up to 20mm thick, this machine handles it all without compromising accuracy.
⚙️Global-Ready Operation: Featuring an intuitive PLC touchscreen available in English, Spanish, and Russian, and supporting flexible electrical inputs (110-220V, 50HZ), it is ready for deployment in facilities worldwide.
Key Applications
The DMHA-1650 is the ultimate double sided tape applying machine for the printing, packaging, and e-commerce fulfillment industries. It is widely used for:
Courier Envelopes & Mailers: Fast, reliable sealing strips.
Carton Boxes & Corrugated Packaging: Structural taping for folding cartons.
Promotional Materials: Posters, A4 paper flyers, and retail displays.
Plastic & PVC Products: Adhesion for rigid or semi-rigid PVC materials.
Precision Taping Performance
Accuracy is critical in automated packaging. This automatic taping machine allows for a minimum tape length of 35mm and a highly precise minimum distance of 25mm between applications. It accommodates tape widths ranging from 5mm up to 33mm, using standard rolls with a 76mm internal diameter.
Technical Specifications (DMHA-1650)
For easy reference, here are the exact specifications of the DMHA-1650 model:
Feature | Specification |
Model | DMHA-1650 |
Max Product Width | 90 - 1600 mm |
Minimum Product Thickness | 100 GSM |
Max Material Thickness | 20 mm |
Machine Speed | 32 m/min |
Tape Applicators (Heads) | 1, 2, 3, 4, 5, 6, 7, 8 |
Tape Width Range | 5 mm up to 33 mm |
Internal Diameter (Roll Tape) | 76 mm |
Min. Tape Length | 35 mm |
Min. Distance Between Spots | 25 mm |
Max Number of Spots in Line | 4 |
Applicable Materials | Envelope, A4 paper, carton box, PVC material |
PLC Languages | English, Spanish, Russian |
Power Supply | 110-220V, 50HZ |
Dimensions (L x W x H) | 1900 x 1300 x 1550 mm |
Weight | 270 kg |
Invest in Reliable Automation
Built with robust components, weighing 270kg for stability during high-speed operations, and backed by a 12-month warranty, the DMHA-1650 is a secure investment for your business.
Ready to upgrade your packaging process?
Stop relying on slow, manual taping. Contact our sales team today for a customized quote, machine video demonstrations, or to discuss how the DMHA-1650 Double Sided Tape Applying Machine can fit into your specific production line.
🔄 Explore Other Models in Our Lineup
Does your production line have specific requirements? We offer a complete range of taping solutions to fit your exact needs. Click the links below to explore our other top-selling models:

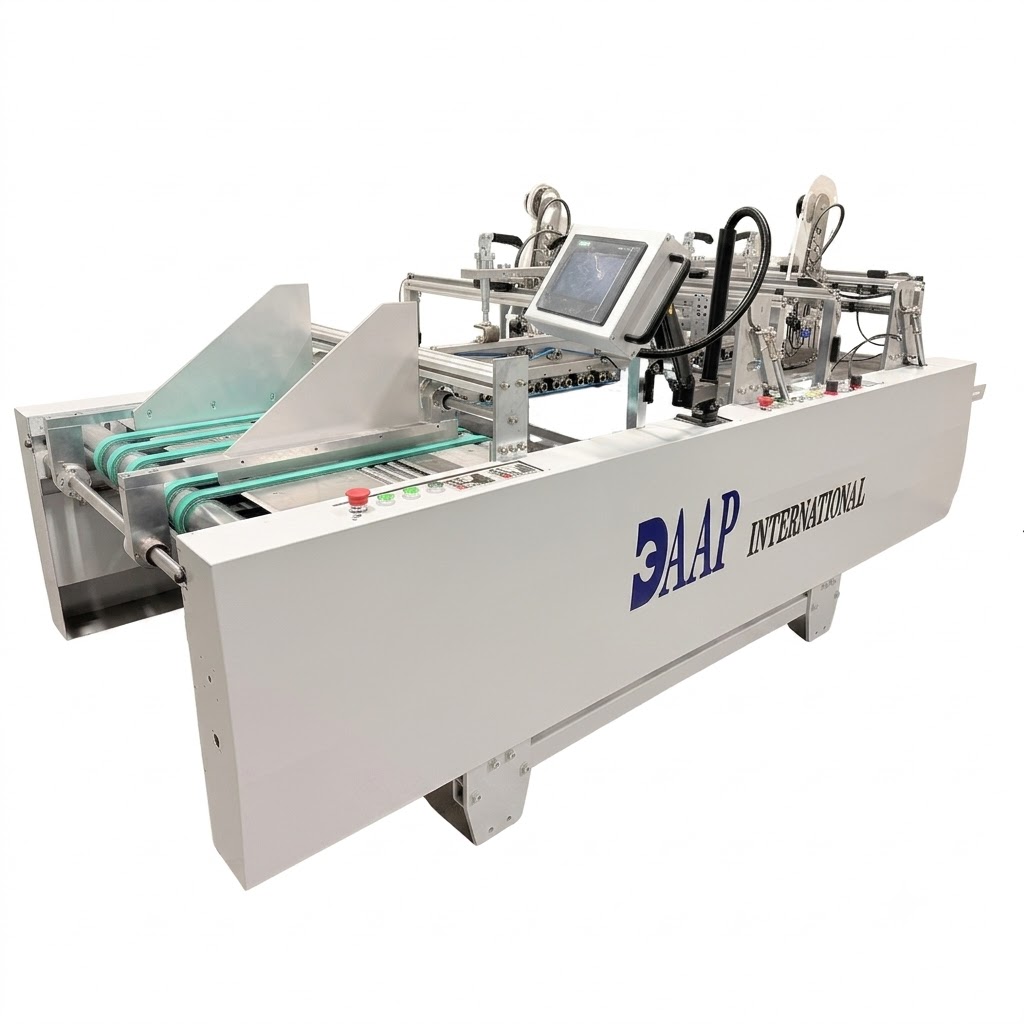

⚙️Require Automatic Feeding? If you are looking for a fully automated feeding system for continuous, high-volume operation, discover our [DMHA-A800 Automatic Feeding Tape Applying Machine]

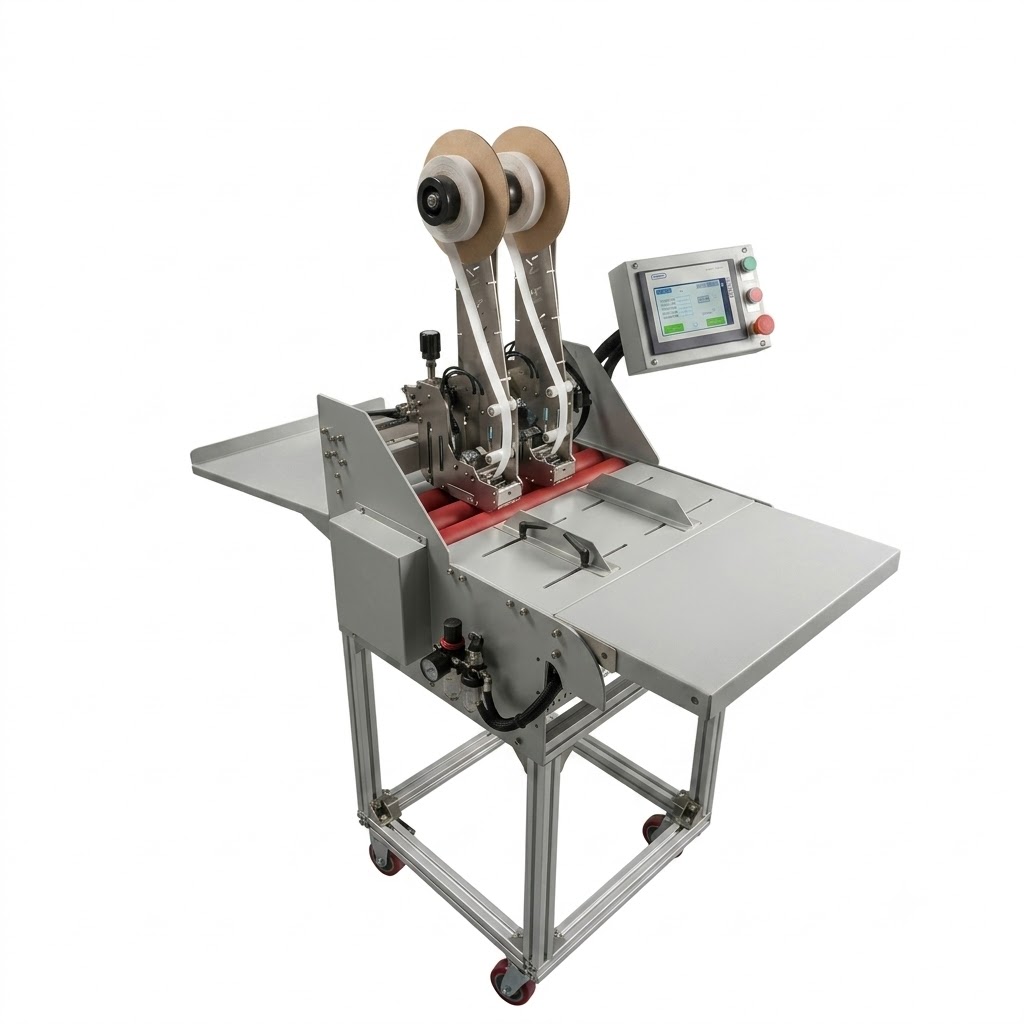

⚙️Processing Small-Sized Products? If your packaging involves smaller dimensions that require delicate and precise handling, our [DMHA-520 Compact Tape Applying Machine]is the ideal choice designed specifically for you.
