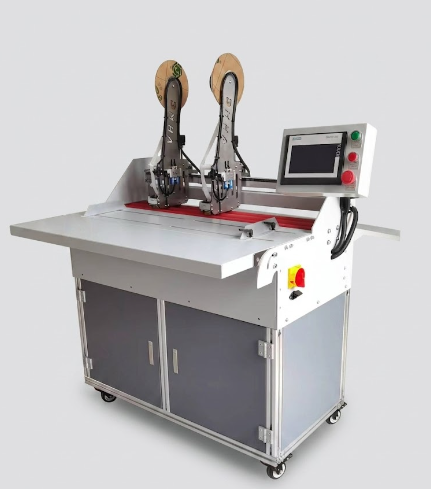

DMHA-1060 Tape Applicator Machine

Model: DMHA-1060

Power: 0.75kW

Product width: 90-1000mm

Machine speed : 32m/min

PLC Language: English,Spanish,Russia

Electrical need: 110-220V 50HZ

Material: Envelope ,A4 paper ,carton box ,PVC material

Max material thickness: 50mm

Internal diameter roll tape: 76mm

Tape width:5mm to 33mm

Taping head:1,2,3

Minimum Product Thickness:100gsm

Weight:170kg

Diamention:1300*850*1650mm

Warranty:12 months


DMHA-1060 Tape Applicator Machine DMHA-1060 is suitable for product widths ranging from 90 to 1000 mm.

DMHA-1060 Tape Applicator Machine DMHA-1060 is a midum size tape applicator machine, with high cost effective.

DMHA-1060 Tape Applicator Machine DMHA-1060 offers a wide range of compatible material widths, making it a versatile and popular model.

DMHA-1060 Tape Applicator Machine DMHA-1060tape applicator machine offers high precision and saves labor.

DMHA-1060 Tape Applicator Machine DMHA-1060 machine can be operated by two workers simultaneously, enhancing production efficiency.

DMHA-1060 Tape Applicator Machine DMHA-1060 can accommodate additional heads as needed, with a maximum capacity of five tape heads.



DMHA-1060 Tape Applicator Machine

DMHA-1060 Tape Applicator Machine


DMHA-1060 Tape Applicator Machine

Specification-DMHA-1060

Specification

Model

DMHA-1060

Max product width

90-1000mm

Machine speed

32m/min

PLC Language

English, Spanish,Russia

Electrical need

110-220V,50HZ

Material

Envelope ,A4 paper ,carton box ,PVC material

Max material thickness

20mm

Max number of spots in line

3

Min tape length

35mm

Min distance between application and the next

25mm

Internal diameter roll tape

76mm

Tape width

4mm up to 30mm

Tape applicator/taping head

1,2,3 or 4

Minimum Product Thickness

100GSM

Weight

170kg

Dimension

1680x1300x1550mm (L x W x H)

Warranty:

12 Months





DMHA-1060 Tape Applicator Machine


 DMHA-1060 Tape Applicator MachineDMHA-1060 Advantages


DMHA-1060 Tape Applicator Machine DMHA-1060 allows a wide range of product widths.

DMHA-1060 Tape Applicator Machine DMHA-1060 is extremely user-friendly, enabling quick training for new operators and simultaneous operation by two personnel.

DMHA-1060 Tape Applicator Machine DMHA-1060 offers high cost-effectiveness, boosting efficiency and reducing production costs for factories.

DMHA-1060 Tape Applicator Machine DMHA-1060 accommodates various tape types and materials, with the option to add additional tape heads based on future production needs.

DMHA-1060 Tape Applicator Machine DMHA-1060 is easily movable, allowing quick repositioning according to production demands. It supports multi-station switching with high flexible.






DMHA-1060 Tape Applicator Machine

DMHA-1060 Tape Applicator Machine


DMHA-1060 Tape Applicator Machine

The Importance of Choosing DAAP DMHA-1060

DAAP's tape applicator machine maximizes simplicity in installation, operation, maintenance, and customization. Customers can find one-stop solutions for all packaging needs at DAAP. When selecting superior equipment, customers must consider not only the quality of the machinery itself but also after-sales service, ongoing support, and spare parts availability. Unlike conventional tape applicator equipment, DMHA-1060 is easy to install, simple to operate and maintain, features low daily maintenance costs, and boasts a longer service life—delivering greater value to our customers.


DMHA-1060 Tape Applicator Machine





DMHA-1060 Tape Applicator Machine

Wide Applications of DAAP DMHA-1060

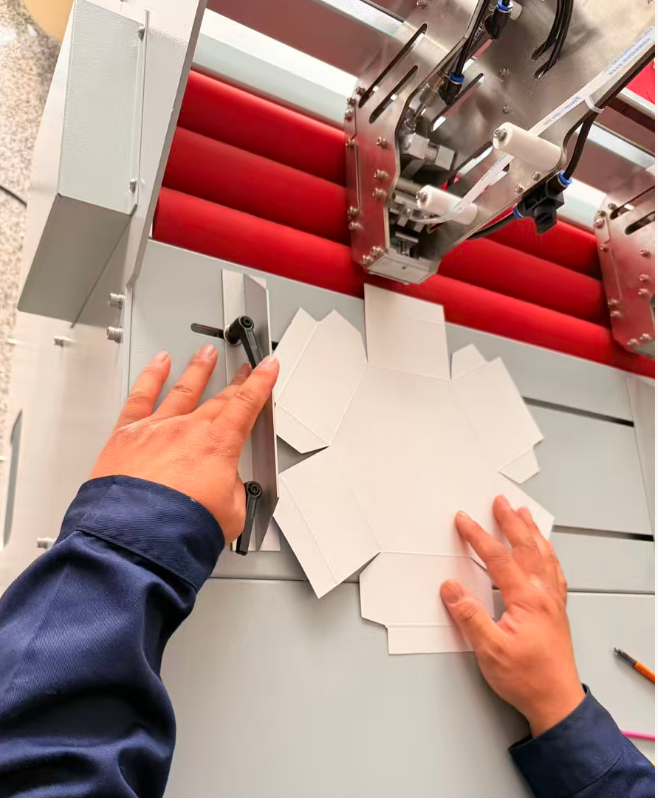

DMHA-1060 Tape Applicator Machine Used for applying the double sided tape ,sealing tape and PVC tape on the envelope ,A4 paper ,carton box ,PVC material ,decoration material and so on .

DMHA-1060 Tape Applicator Machine It is widely used in  building materials, packaging, printing and many other industries

DMHA-1060 Tape Applicator Machine Instead of manual operation,and saving the labor force.

DMHA-1060 Tape Applicator Machine It is light and flexible,convenient to move, PLC programming, touching screen, operation simple.

DMHA-1060 Tape Applicator Machine With an adjustable feeding table and ability to load width≤100cm it is the perfect machine for small scale work.





DMHA-1060 Tape Applicator Machine


DMHA-1060 Tape Applicator MachineWhy choose DMHA-1060?

The DMHA-1060 is a compact to medium-sized machine. Its width meets the requirements of most factories. This machine balances cost-effectiveness and practicality for users, allowing two workers to operate it simultaneously. It can complete more adhesive application tasks in a shorter time, significantly creating value for customers.


Key Features Making DAAP tape applicator machines Stand Out

DMHA-1060 offers flexible integration with various devices, including conveyor belts, double-sided tape heads, easy-tear tape heads, box gluers, and custom components.

DMHA-1060 features a robust structure, renowned brand components, and a stable system to ensure optimal performance. Its versatile configuration modes and modular design allow flexible adaptation to different equipment setups and future expansions. Premium roller selection, movable panels, and safety locking mechanisms are integrated to meet end-user requirements, guaranteeing long-term stable and precise operation at high speeds.

DMHA-1060 Tape Applicator Machine
