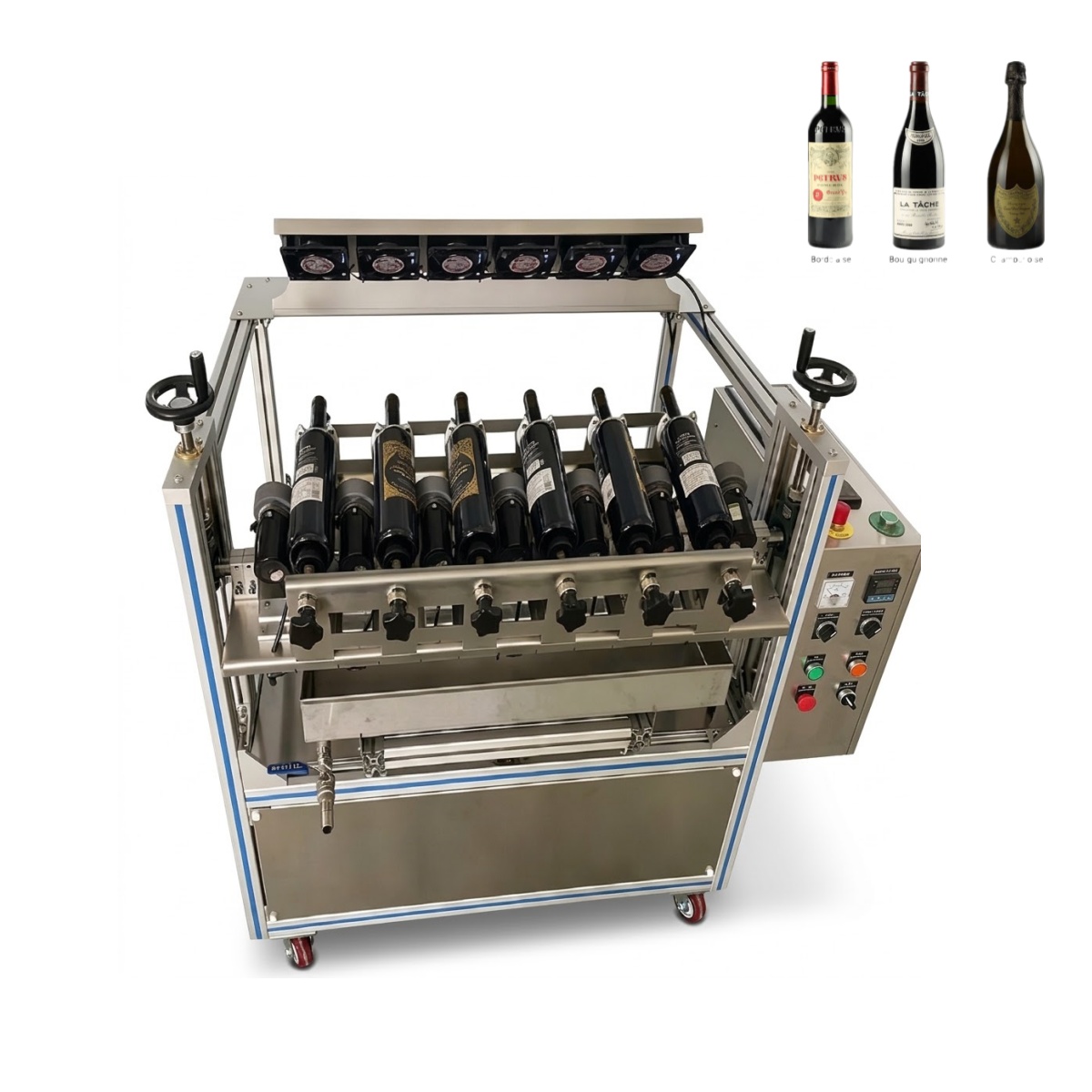

’For packaging lines processing recessed-base glass bottles, manual wax sealing creates severe production bottlenecks. Upgrading to the DMHA-LF60 automatic wax dipping machinedirectly addresses labor overhead, physical strain, and output inconsistency in high-volume B2B environments.

The Limitations of Manual Wax Sealing

Manual dipping introduces variable wax thickness, inconsistent stamping alignment, and high operator strain. As production scales, manual workstations linearly increase labor costs while complicating quality control and material tracking.

Production Metrics of the DMHA-LF60

The DMHA-LF60 operates at more than five times the efficiency of manual labor. Utilizing a 6-workstation configuration, the equipment delivers stable, continuous throughput:

• Without Stamp: Up to 350 bottles per hour.

• With Stamp: Up to 160 bottles per hour (dependent on bottle size and ambient conditions).

The system fully automates wax melting, equipment adjustment, dipping, automatic shaping, and final water or air cooling. This standardizes cycle times and significantly reduces the physical load on operators.

Cost Control and ROI

• Labor Reduction: The automated process requires minimal manual intervention, drastically reducing the direct headcount required for the sealing stage.

• Material Efficiency: Precise parameter adjustments via the color touchscreen ensure a uniform sealing wax height of 20-60mm. This stabilizes wax consumption at approximately 6-8g per piece, eliminating material waste.

• Equipment Stability: Constructed from SUS304 stainless steel and aluminum. The reinforced arm design reduces mechanical load on the electric cylinder, which greatly extends the equipment’s service life and ensures a low failure rate.

Frequently Asked Questions (FAQ)

• What is the output of the automatic bottle wax dipping machine?The DMHA-LF60 processes up to 350 bottles per hour without a stamped seal, and 160 bottles per hour with a stamped seal.

• Does the wax sealing machine work with recessed base bottles?Yes, the equipment is specifically suitable for sealing the bottoms of glass bottles with grooves, including standard 750ml wine bottles with a recessed base.

• Can the bottle wax coating machine accommodate different bottle sizes?The standard model fits bottle diameters of Φ75-Φ100mm and heights of 260-360mm. Custom sizes are available based on specific customer products.

• How does the equipment solidify the wax?Operators can choose between water-cooled or air-cooled wax solidification methods based on operational needs and ambient temperatures.

Ready to eliminate manual bottling bottlenecks?

Upgrade your packaging line with the DMHA-LF60. Contact DAAP Machinery today for a competitive quote and discover how our automated wax dipping solutions can boost your production efficiency.
