For warehouse managers, logistics providers, and distribution centers, loading and unloading trucks at facilities without standardized docking bays presents a major operational challenge. Relying on manual labor to bridge the height gap between the warehouse floor and varying truck beds is not only time-consuming but also increases the risk of worker injury and product damage.

Hydraulic climbing conveyors (incline belt conveyors) provide a highly efficient, automated solution to this bottleneck. By offering seamless height adjustability and high-capacity material handling, these systems drastically streamline the logistics workflow. Here is a technical breakdown of how integrating a hydraulic climbing conveyor can optimize your loading operations.

Flexible Height Adjustment for Varied Truck Beds

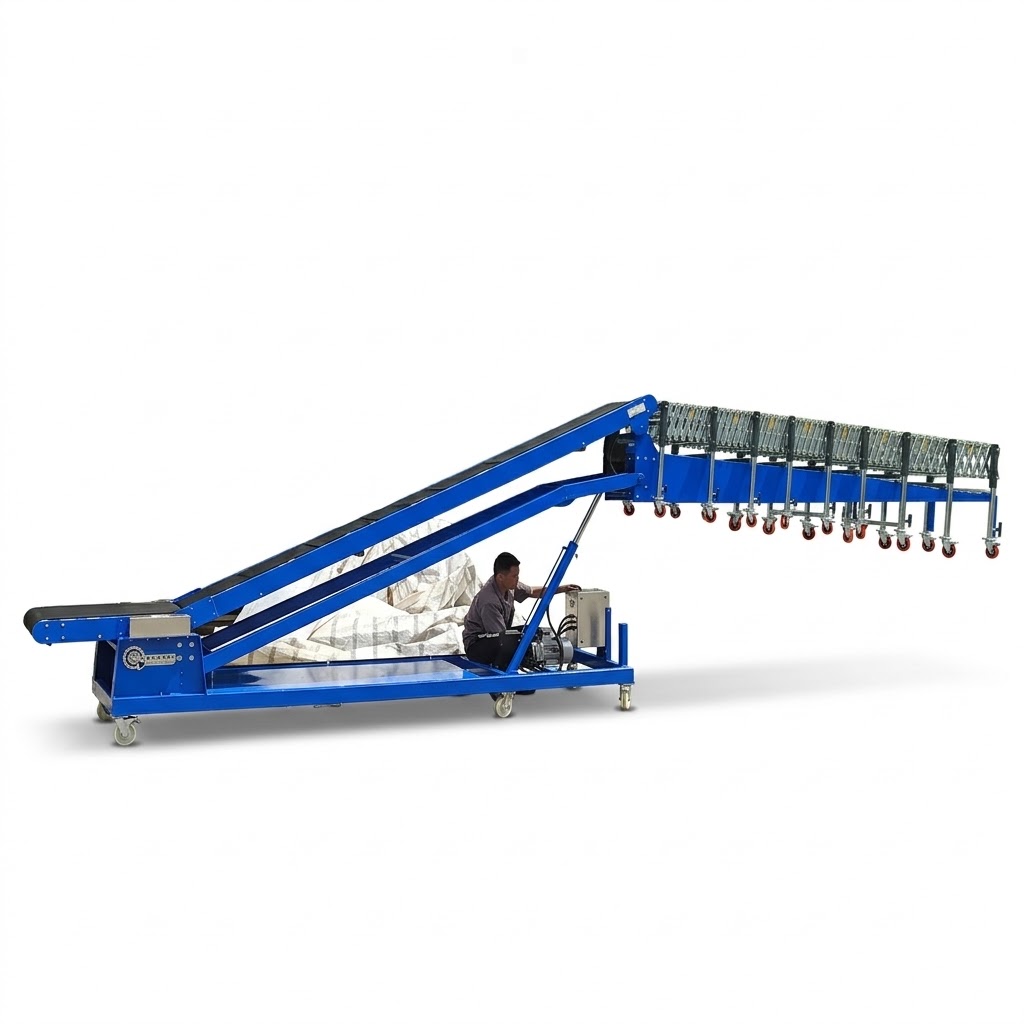

The core advantage of a hydraulic climbing conveyor lies in its robust lifting mechanism. Powered by a heavy-duty 2200W dual-cylinder hydraulic system, the equipment generates up to 5 tons of lifting thrust.

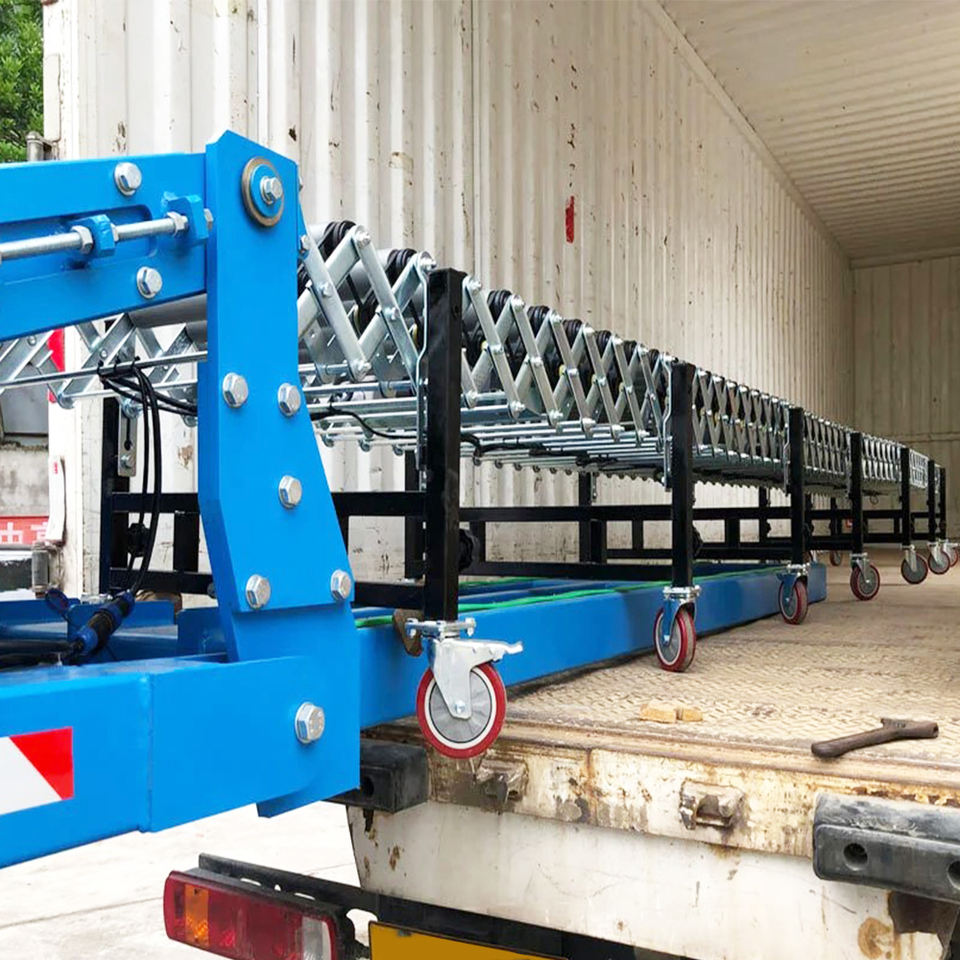

This allows the discharge end of the conveyor to be precisely adjusted from 850mm to 1800mm in height. Whether you are loading light-duty delivery vans, box trucks, or heavy-duty semi-trailers, the conveyor aligns perfectly with the vehicle bed, eliminating the need for manual lifting and bending.

Robust Construction for High-Capacity Handling

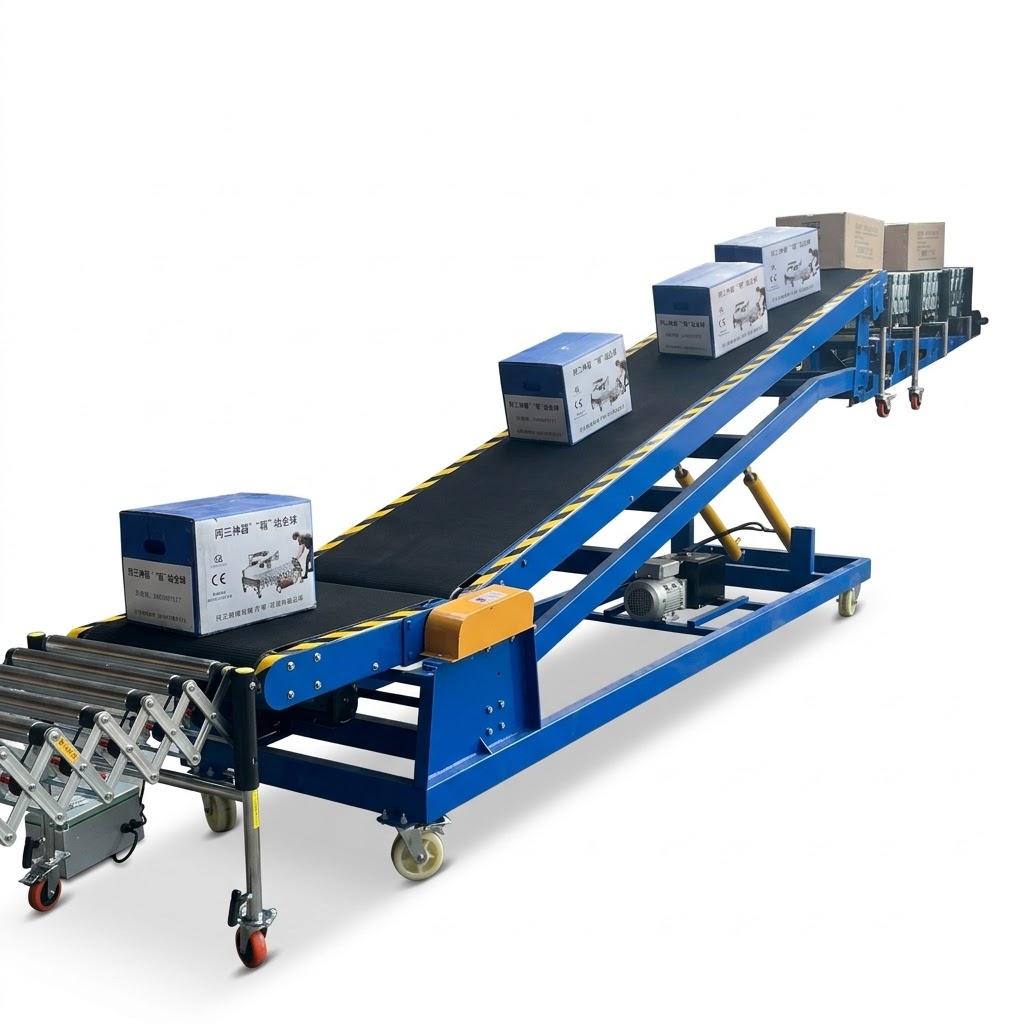

Industrial material handling requires equipment built for continuous, rigorous use. This conveyor system features a well-engineered total length of 4.8 meters, which is divided into a 4000mm inclined section and an 800mm horizontal flat extension at the end, making it significantly easier for workers to receive and stack goods.

With an effective conveying width of 600mm, it easily accommodates standard cartons, parcels, and bulk goods. Built with a solid carbon steel frame—featuring a 3.0mm thickness for both the line body and the keel—the system supports a heavy-duty load capacity of 100kg per meter. This ensures uncompromising structural stability even under maximum load conditions.

Optimized Belt Drive and Speed Control

Throughput speed directly impacts your logistics efficiency. Driven by a dedicated 750W motor (featuring reliable Naixin motors and Shengbang frequency inverters), the belt speed is fully adjustable from 0 to 30 meters per minute.

A critical operational feature is its bi-directional (forward and reverse) capability, allowing a single machine to handle both truck loading and unloading tasks seamlessly. To prevent cartons from slipping backward on the incline, the machine is equipped with a 5.0mm thick rough-top (grass pattern) PVC wear-resistant belt (PVK transmission options are also available). Furthermore, anti-fall side baffles are installed along the edges to keep materials securely on track during transit.

User-Friendly Controls and Workplace Safety

Operating the conveyor is streamlined through a centralized, intuitive control box. Floor operators can easily manage all primary functions from one panel, including:

🌱Start/Stop functions

🌱Forward and reverse directional switching

🌱Variable speed adjustment

🌱Hydraulic up/down height control

For workplace safety, an emergency stop button is prominently integrated into the control panel, allowing for immediate power cutoff in the event of an operational hazard, thereby protecting both your personnel and your cargo.

Conclusion: Maximizing Your Logistics ROI

Upgrading to a hydraulic climbing conveyor is a strategic investment that yields immediate returns. By bridging the height gap at unstandardized loading docks, businesses can significantly reduce manual labor costs, accelerate truck turnaround times, and minimize workplace injuries.

Ready to upgrade your material handling process? Contact our engineering team today to get a detailed quote or to discuss custom conveyor specifications tailored to your exact warehouse layout and daily throughput requirements.
