Standard top-sealing is relatively straightforward, but dealing with recessed bases or grooved glass bottles complicates the production line. Standard equipment often struggles with these irregular surfaces. This is exactly where a specialized wax sealing machine like the DMHA-LF60 becomes necessary, designed specifically to manage the unique requirements of grooved bottoms.

To understand how this works in a real-world production environment, let's break down the workflow using the DMHA-LF60 as our benchmark.

The 6-Workstation Process: From Melting to Cooling

A consistent glass bottle wax sealing process requires strict control over temperature, timing, and movement. The DMHA-LF60 manages this across six dedicated workstations.

The operation begins at the color touchscreen. Operators input the required parameters here, allowing the wax sealing equipment to adapt to different regional ambient temperatures and varying wax types. Once the wax melts to the proper consistency, the automated sequence takes over:

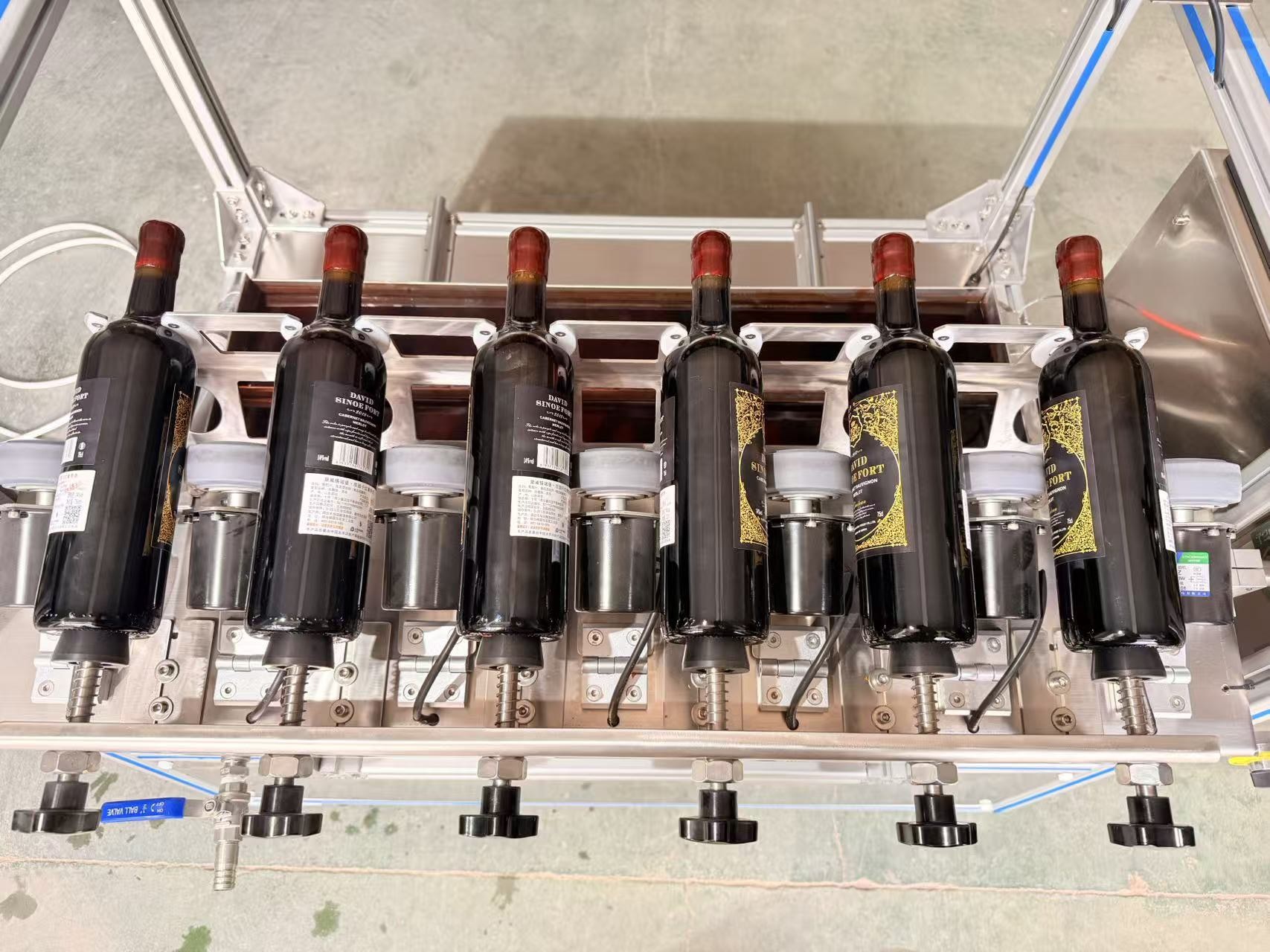

⚙️Automatic Wax Dipping: The machine physically lowers the grooved bases of the bottles into the wax.

⚙️Automatic Shaping: Simply dipping the bottle isn't enough for recessed bases. The machine automatically shapes the applied wax while it is still malleable to ensure a clean, uniform finish.

⚙️Solidification: To prevent deformation, the wax must set quickly. Depending on the facility's specific requirements, operators can choose between automatic water cooling or air cooling.

Behind the scenes, this entire motion is supported by a reinforced arm design. This structural choice reduces the mechanical load on the electric cylinder, lowering the equipment's failure rate and extending its overall service life.

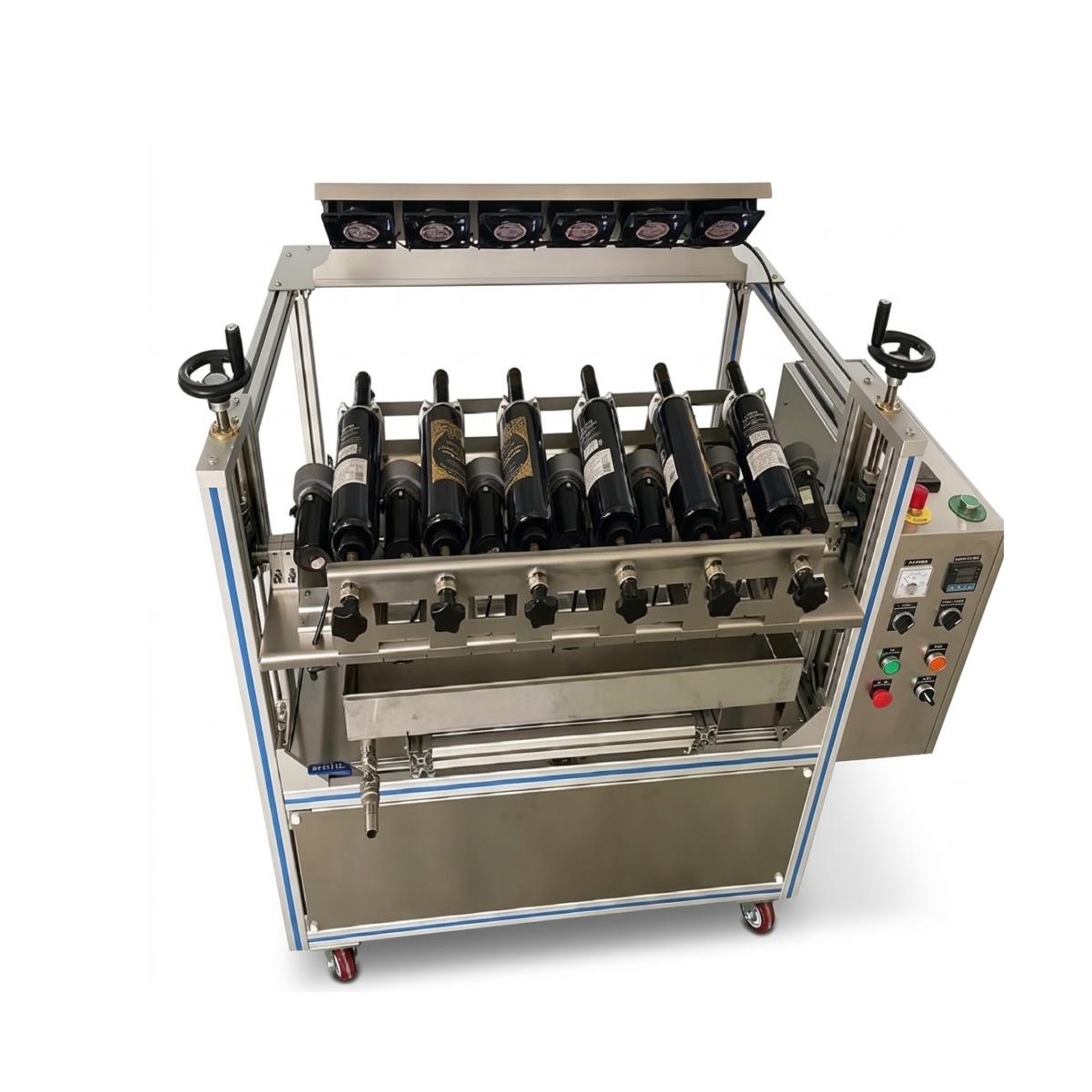

Application: What Can the DMHA-LF60 Handle?

This bottle wax sealing machine is not a universal tool for every bottle shape; it is highly targeted. Its most typical application is wine bottle wax sealing, specifically for 750 ml bottles featuring a recessed base.

Based on its standard specifications, the machine accommodates:

⚙️Bottle Diameter: Φ75–100 mm

⚙️Bottle Height: 260–360 mm

⚙️Sealing Wax Height: 20–60 mm (This varies depending on the depth and shape of the bottle's groove).

If a production run requires dimensions outside these ranges, custom sizes are available, provided they are confirmed against the actual product specifications.

Throughput and Production Variables

The DMHA-LF60 has a listed working speed of approximately 350 bottles per hour for standard sealing, which drops to about 160 bottles per hour if stamping is required. However, these numbers are not static.

In any real-world facility, the actual output speed and the quality of the finish depend heavily on several operational factors. The size and specific shape of the bottle dictate how the wax flows and shapes. Furthermore, the characteristics of the wax particles used, the ambient temperature and environmental humidity of the workspace, and the proficiency of the operator running the machine will all shift the final hourly throughput.

Technical Specifications Overview

Constructed from SUS304 stainless steel and aluminum, the machine is built for industrial environments. Here is the core data for production and procurement planning:

The Business Case for Mechanization

For facilities currently handling grooved bases manually, the primary reason to upgrade is consistency and labor efficiency. Relying on manual labor for repetitive dipping and shaping often results in uneven seals and operator fatigue.

The DMHA-LF60 operates at more than five times the efficiency of manual labor. Transitioning to a machine-driven process significantly reduces the physical strain on workers, cuts labor costs, and ensures that every bottle exiting the line features a uniform, repeatable seal.

Final Thoughts

Selecting the right packaging equipment means matching the machine to the specific geometry of the bottle. For manufacturers dealing with recessed bases, the DMHA-LF60 provides a targeted solution by taking control of the automatic wax dipping, shaping, and cooling phases.
