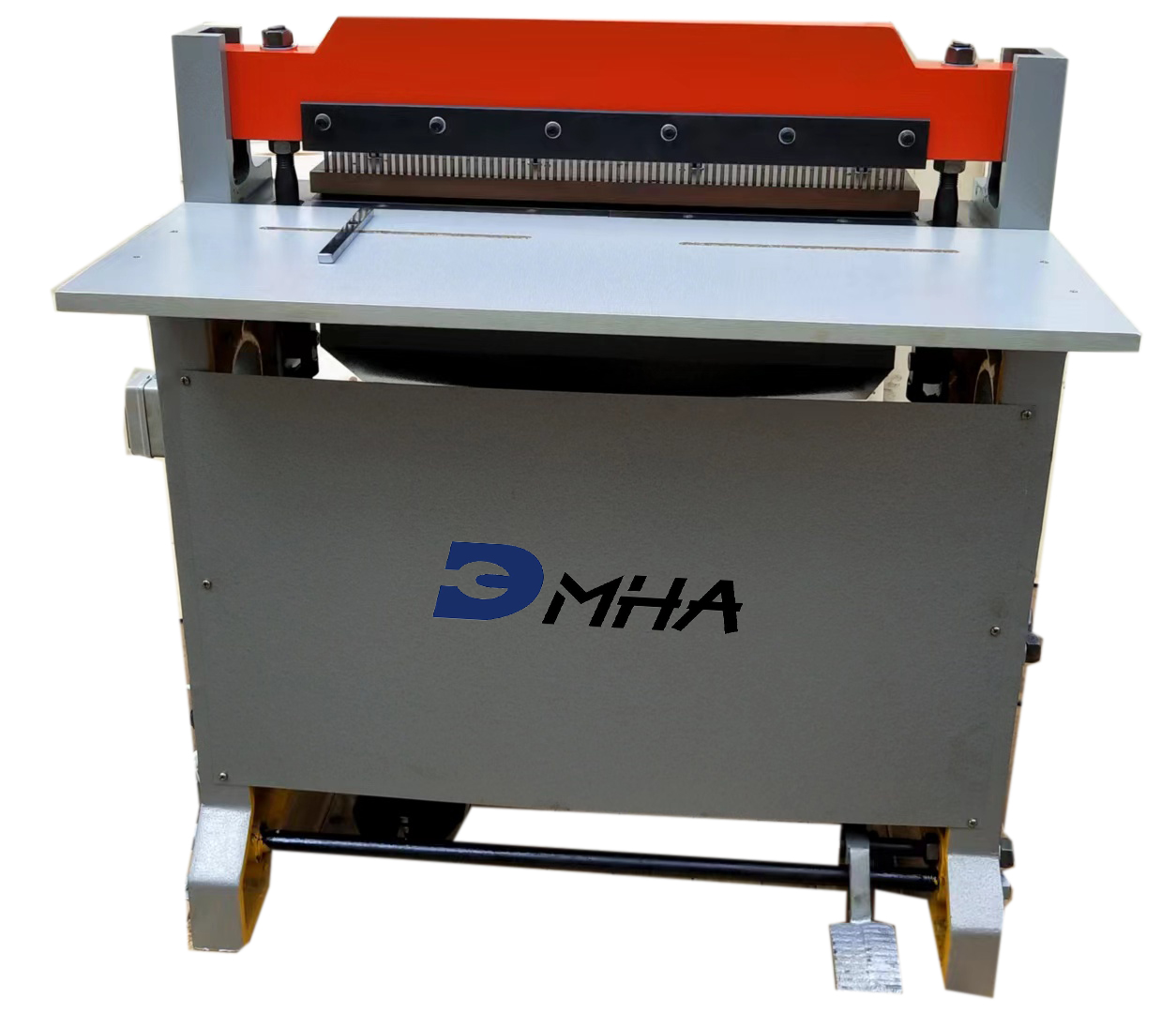

Maximize Production Efficiency with the DMHA-CK620 Multi-Purpose Punching Machine
In the fast-paced printing and packaging industry, versatility and precision are critical. The DMHA-CK620 Multi-Purpose Punching Machine is engineered to meet the diverse demands of modern manufacturers. Designed for heavy-duty commercial use, this high-performance punching equipment offers unparalleled flexibility for processing a wide variety of paper and plastic products.
Whether you are outfitting a large-scale printing factory or a specialized bindery, the DMHA-CK620 delivers clean, precise punches and cuts across multiple materials, streamlining your production workflow and expanding your manufacturing capabilities.
Technical Specifications
The DMHA-CK620 is built with robust internal mechanics to handle continuous, high-volume production. Below are the core technical parameters that drive its performance:
| Specification | Details |
| Max. Product Width | 620 mm |
| Max. Punching Distance | 609 mm |
| Max. Punching Thickness | 3.5 mm (Easily punches up to 40 sheets of standard 70g paper at once) |
| Adjustable Margin | 1 mm to 13 mm (Distance from hole to paper edge) Customizable for extended margins or through-holes upon request. |
| Motor Power | 1.1 KW |
| Standard Power Supply | 380V / 50HZ (Can be customized to single-phase 220V / 50HZ) |
| Net Weight | 325 KG |
| Machine Dimensions (L×W×H) | 1080 mm × 770 mm × 1100 mm |
Key Features and Applications
Interchangeable Die System for Maximum Versatility

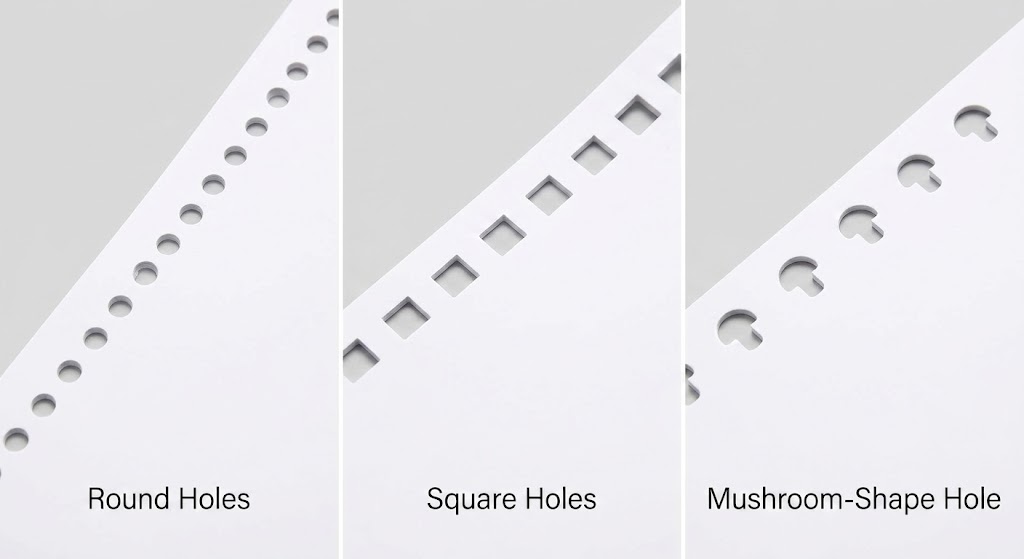

The core strength of the DMHA-CK620 lies in its adaptable die system. By simply swapping out the punching molds, operators can quickly transition between producing round holes, square holes, or custom geometric shapes based on specific client requirements.
Comprehensive Product Compatibility
This machine is an essential asset for manufacturing everyday stationery and custom print jobs. It is optimized for punching:
Desk and wall calendars
Spiral and ring-bound notebooks
Tags, tickets, and binding covers
Chinese and Western-style envelopes (cutting and shaping)
Multi-Material Processing
Beyond standard paper, the DMHA-CK620 is built with the industrial force required to cleanly punch through thick cardboard and rigid PVC cards, making it an ideal all-in-one solution for ID card manufacturers and packaging facilities.
Investing in the DMHA-CK620 means investing in equipment that adapts to your factory's specific electrical and operational needs. With customizable power setups and adjustable margin settings, it integrates seamlessly into any existing production line to immediately boost output and product quality.
