Misaligned double-sided tape leads to material waste and frustrating rework. When using semi-automatic taping machines, alignment issues are usually not caused by machine failure but stem from factors such as slight setup deviations, improper manual feeding, or unstable air supply.

Before contacting technical support, try these three quick troubleshooting steps to restore perfect tape alignment.

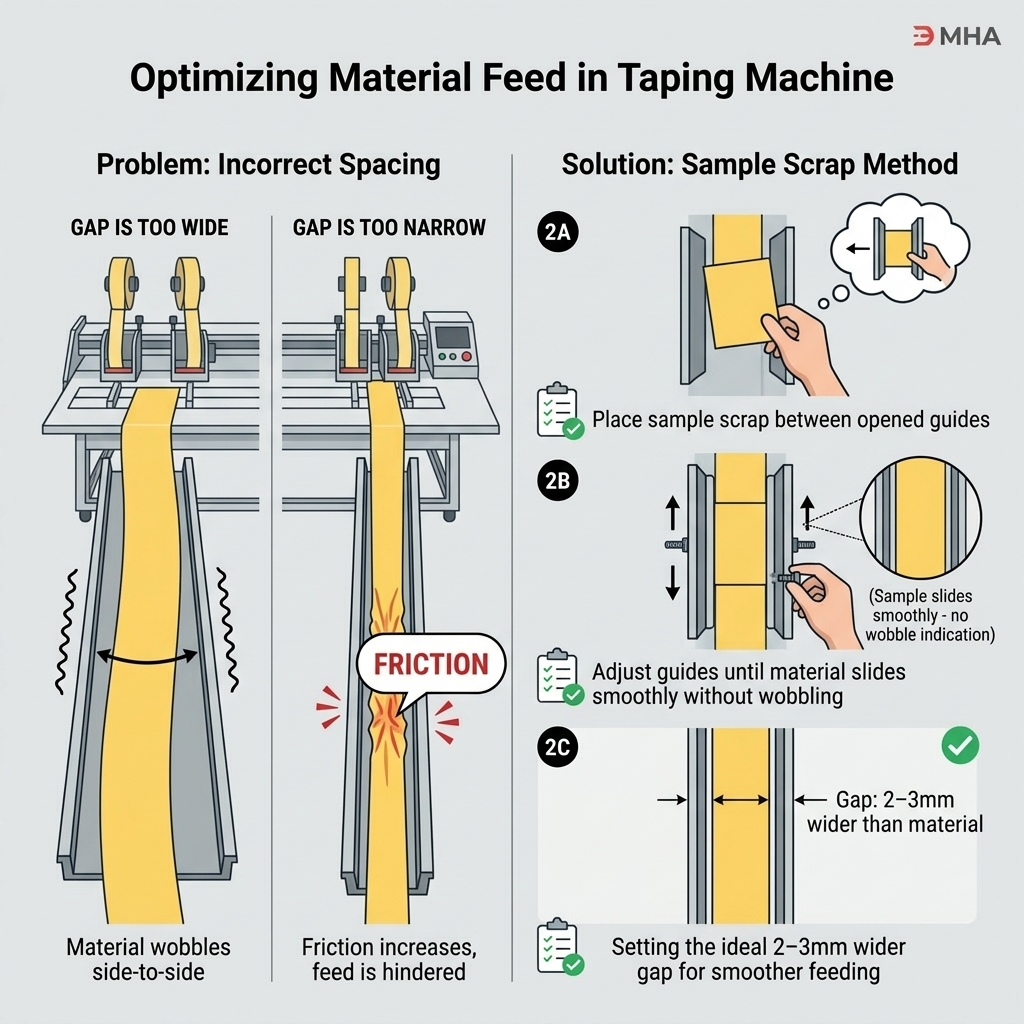

1. Readjust Material Guides

If the guide spacing is too wide, the material will wobble from side to side as it enters the machine; if the spacing is too narrow, friction increases, hindering smooth feeding.

Solution: Place a sample piece of scrap material between the guides and adjust them until the material slides smoothly without lateral wobbling. Setting the gap 2–3mm wider than the material itself facilitates smoother feeding.

DAAP Advantage: The DMHA-520/1060/1420 semi-automatic taping machines feature adjustable guides that help operators align materials precisely. Operators can achieve accurate alignment in seconds without needing extra tools.

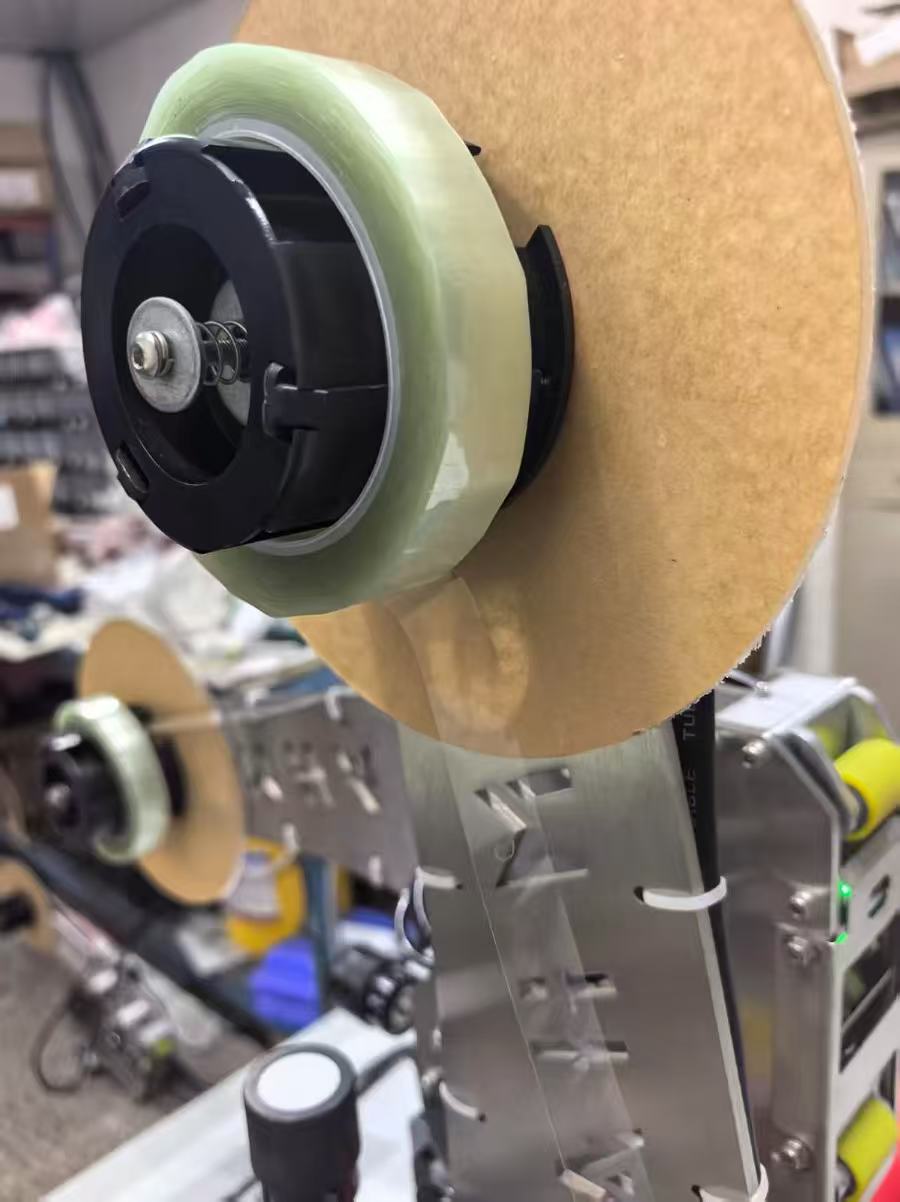

2. Check Tape Tension

Improper tape tension affects how smoothly the tape moves through the machine. Low tension can cause unstable feeding and alignment difficulties, while excessive tension may lead to uneven stress on the tape, compromising application precision.

Solution: Check that the tape unwinds smoothly from the roll without excessive slack or resistance. If the tape unwinds unevenly, refer to the operating manual to check the tape feeding and tension settings.

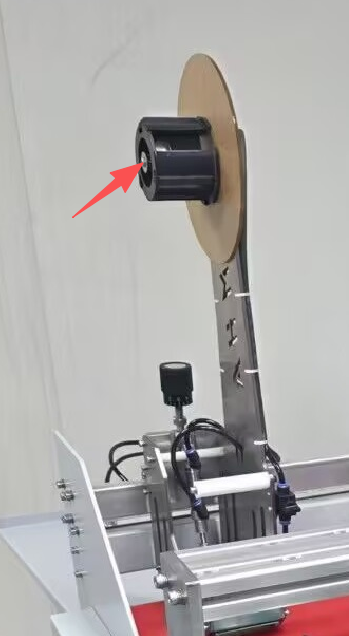

Adjusting this screw controls the resistance; the ideal state is one where the tape can be pulled out with minimal effort.

3. Stabilize Air Supply and Standardize Feeding Technique

Ensure the air supply is stable before feeding the material.

Since material placement is manual, a consistent feeding technique helps ensure uniform tape placement. If the operator introduces even a slight angular deviation during feeding, the applied tape will reflect that same tilt.

Solution: Once the paper engages with the first red roller, simply let go; do not push or pull the sheet, as the drive rollers will automatically feed it through.

DAAP Advantages: The feed section of the DMHA-520/1060/1420 features an ergonomic design that provides operators with a clear, unobstructed view, significantly reducing visual alignment errors during repetitive tasks. Ensuring a snug fit against the guide rail, balanced tension, and straight feeding resolves 90% of tape alignment issues.

If you are looking for a reliable, user-friendly semi-automatic tape applicator that requires minimal operator training, explore the features of the DMHA-520/1060/1420 series today.
