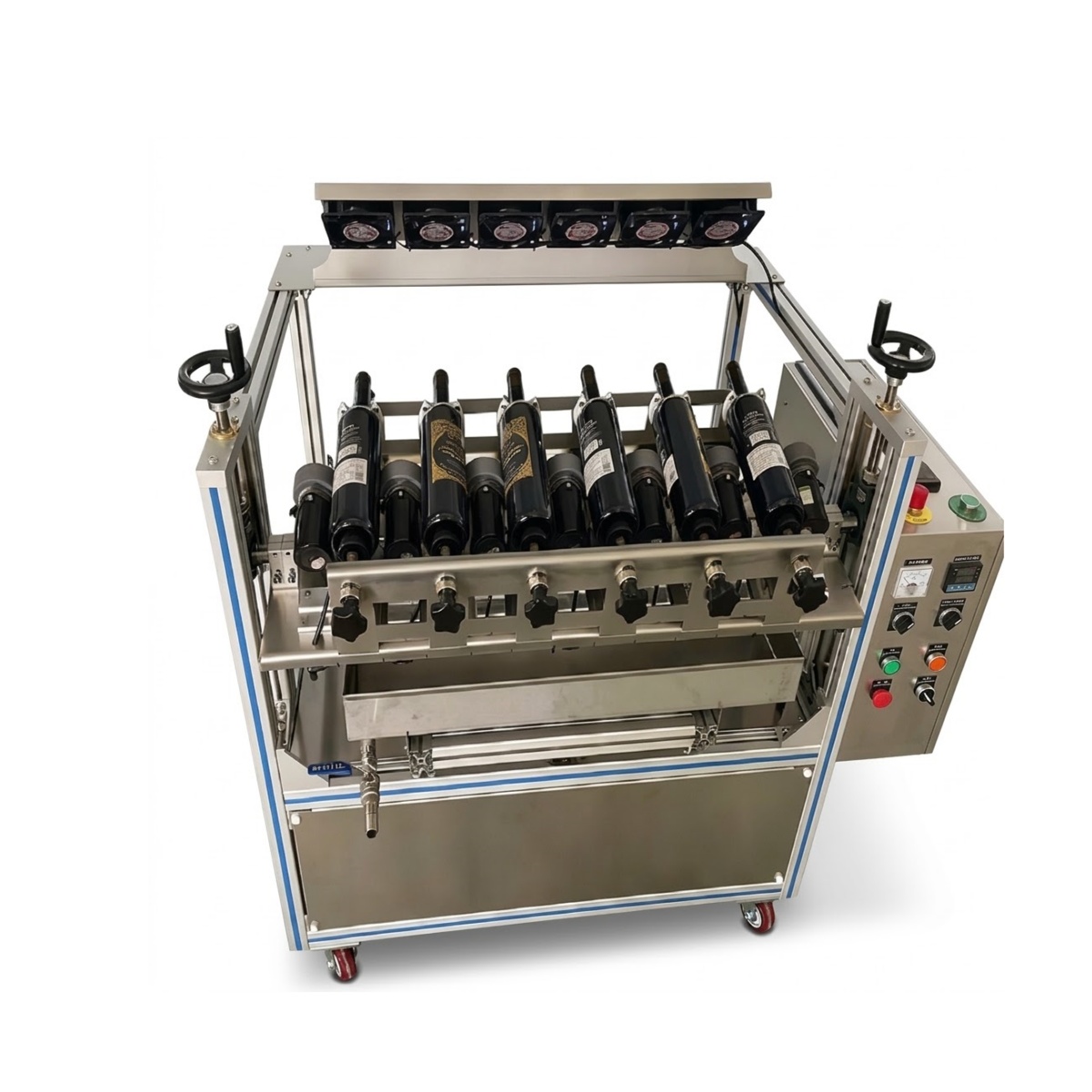

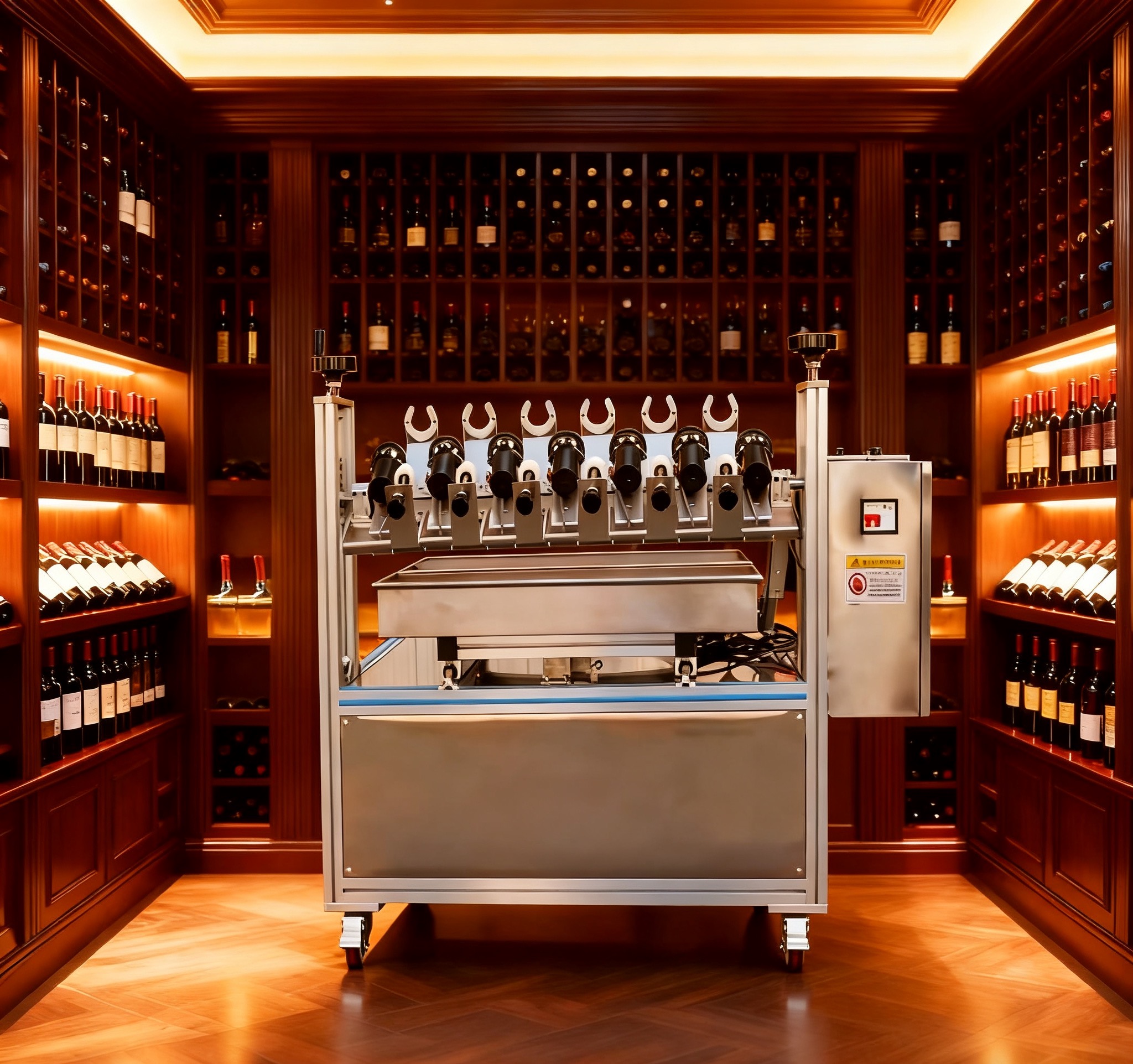

DMHA-LF60 Automatic Glass Bottle Wax Sealing

Introduction

Are you looking to elevate your wine bottle packaging while significantly reducing manual labor costs? The DMHA-LF60 Automatic Wax Sealing Machine is the ultimate solution for medium to large-scale bottling operations. Specifically designed for sealing the bottoms of glass bottles with recessed grooves, this machine combines precision engineering with user-friendly automation to deliver flawless wax seals every time.

Key Features That Drive Results

5x the Efficiency: Upgrade from manual dipping. The DMHA-LF60 operates at more than five times the speed of manual labor, producing up to 350 bottles per hour (without a stamp) or 160 bottles per hour (stamped). This massive boost significantly reduces physical strain and slashes labor costs.

Premium Durability: Constructed from high-grade SUS304 stainless steel and aluminum, the machine is not only aesthetically pleasing but built to withstand demanding production environments. The reinforced arm design minimizes load on the electric cylinder, greatly extending the equipment's service life.

Smart & Adaptable Operation: Equipped with an intuitive color touchscreen, adjusting parameters is seamless. It handles different types of wax and adapts to various ambient temperatures with an exceptionally low failure rate. You can also choose between water-cooled or air-cooled wax solidification methods based on your facility's specific needs.

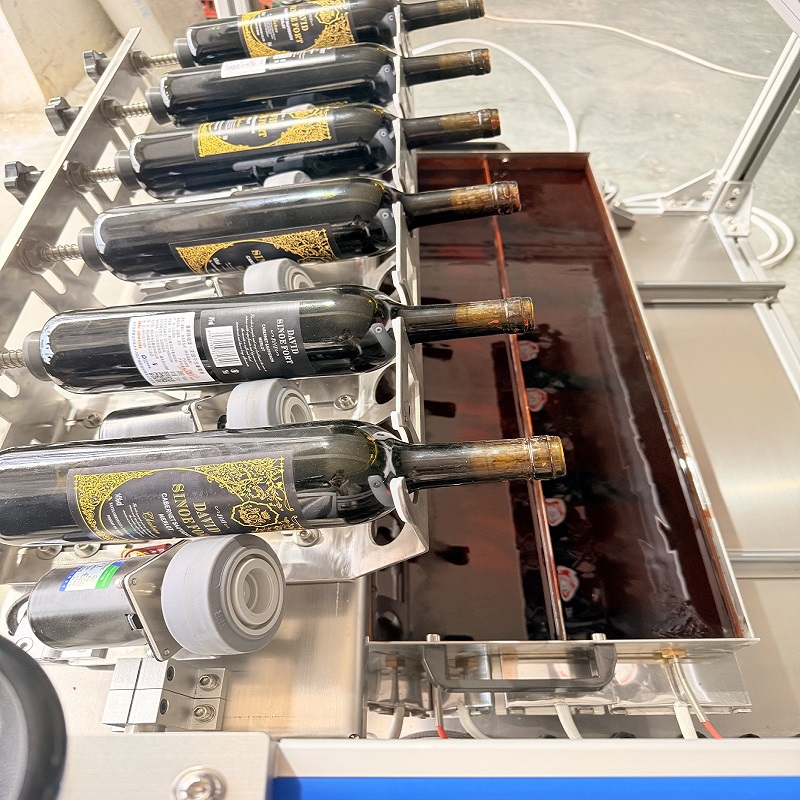

Fully Automated Workflow: Enjoy a hands-off working process: Wax Melting → Startup → Automatic Dipping → Automatic Shaping → Automatic Cooling → Completed.

Technical Specifications

Model: DMHA-LF60

Applicable Products: 750ml wine bottles with recessed bases (Fully customizable to your product)

Workstations: 6 efficient stations

Bottle Dimensions: Diameter Φ75-Φ100mm | Height 260-360mm (Custom sizes available)

Sealing Wax Height: 20-60mm (Customizable based on bottle shape)

Wax Consumption: Highly efficient at approximately 6-8 g/piece

Power & Voltage: 5KW / 220V/50Hz

Dimensions & Weight: 1300×900×1100mm | 140KG

Why Choose the DMHA-LF60?

Investing in the DMHA-LF60 means investing in reliability and scalability. Whether you are a boutique winery or a high-volume packaging facility, this wax sealing machine ensures a premium aesthetic finish for your bottles while keeping operational costs low.

Customization Services: All our machines can be fully customized. We can engineer equipment to accommodate your specific bottle dimensions, workstation requirements, and production line layouts.

Contact us today to request a quote or discuss tailored machinery solutions for your facility!
