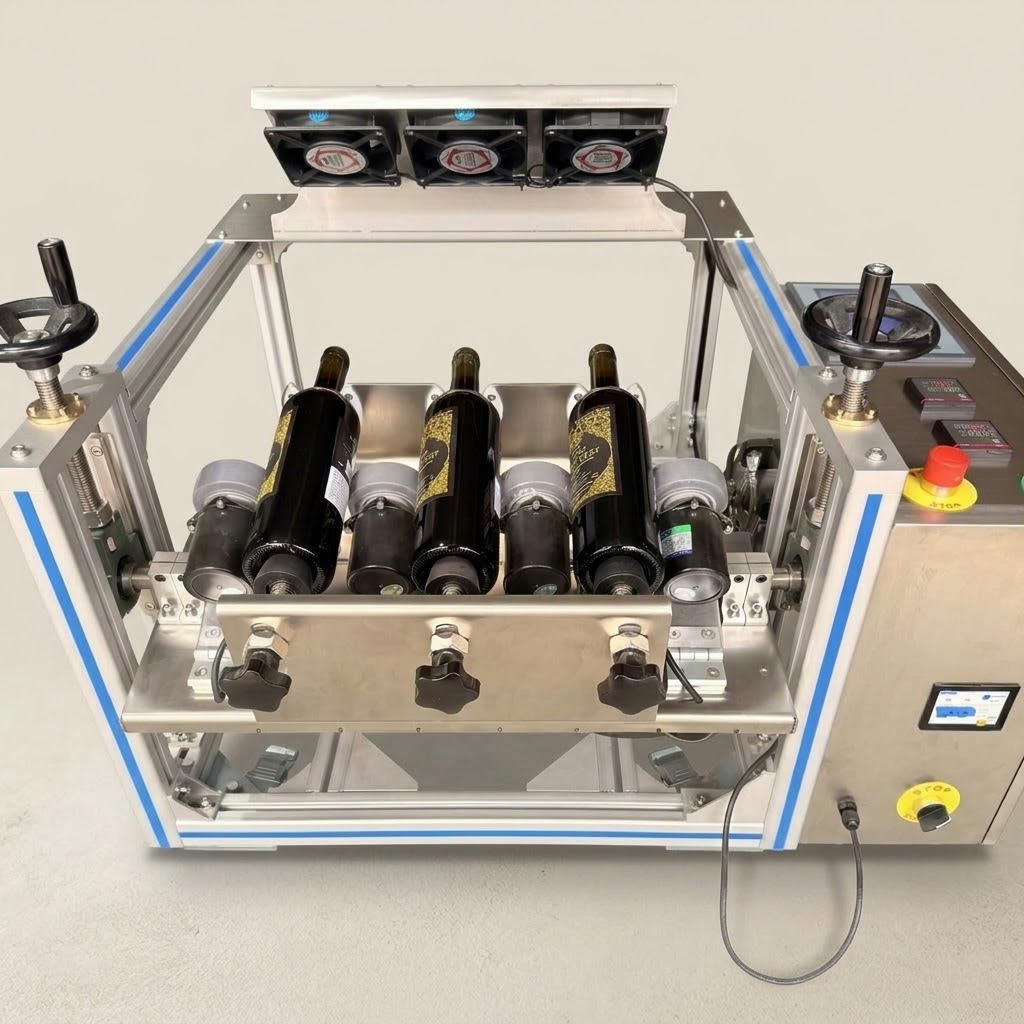

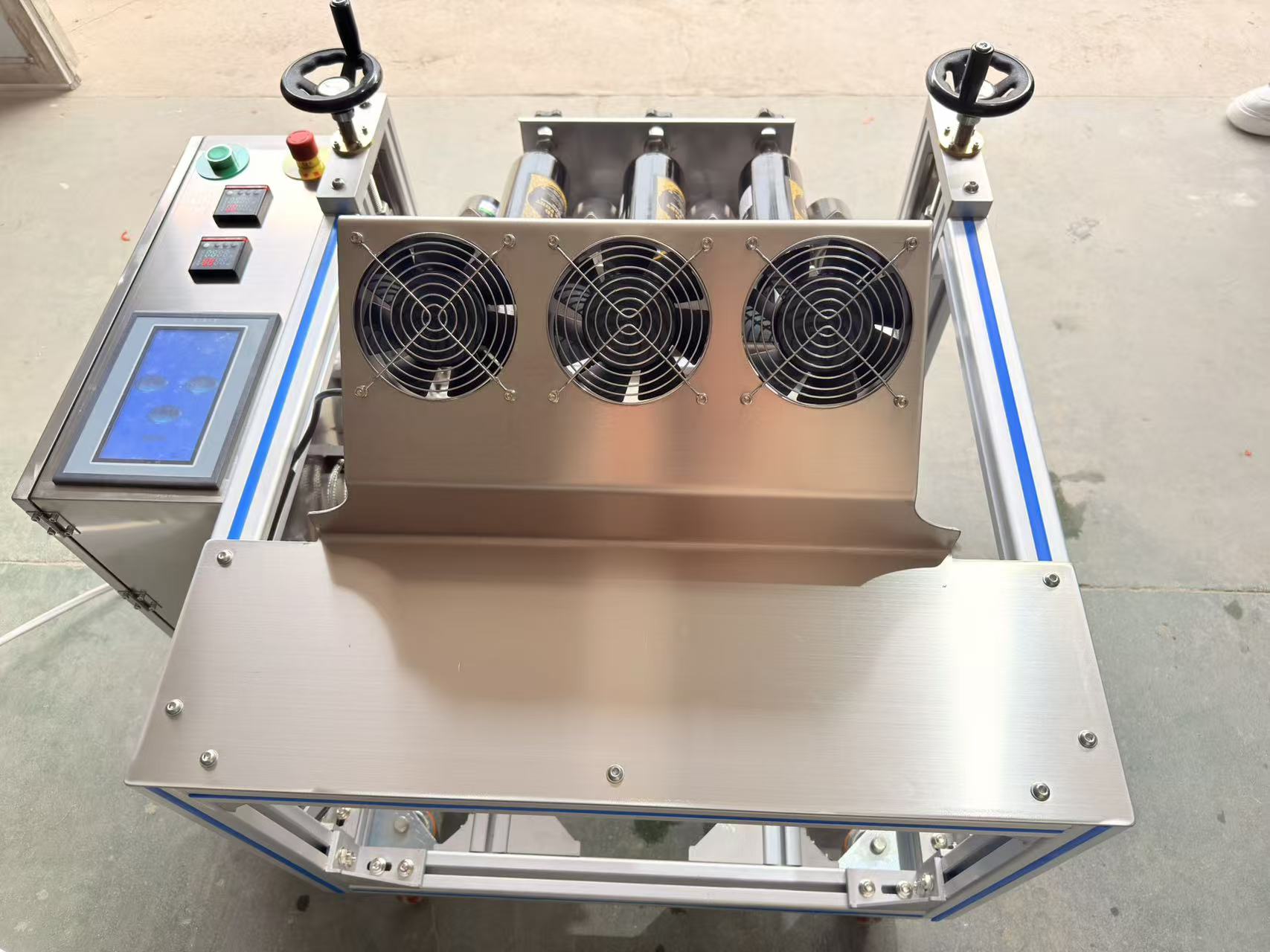

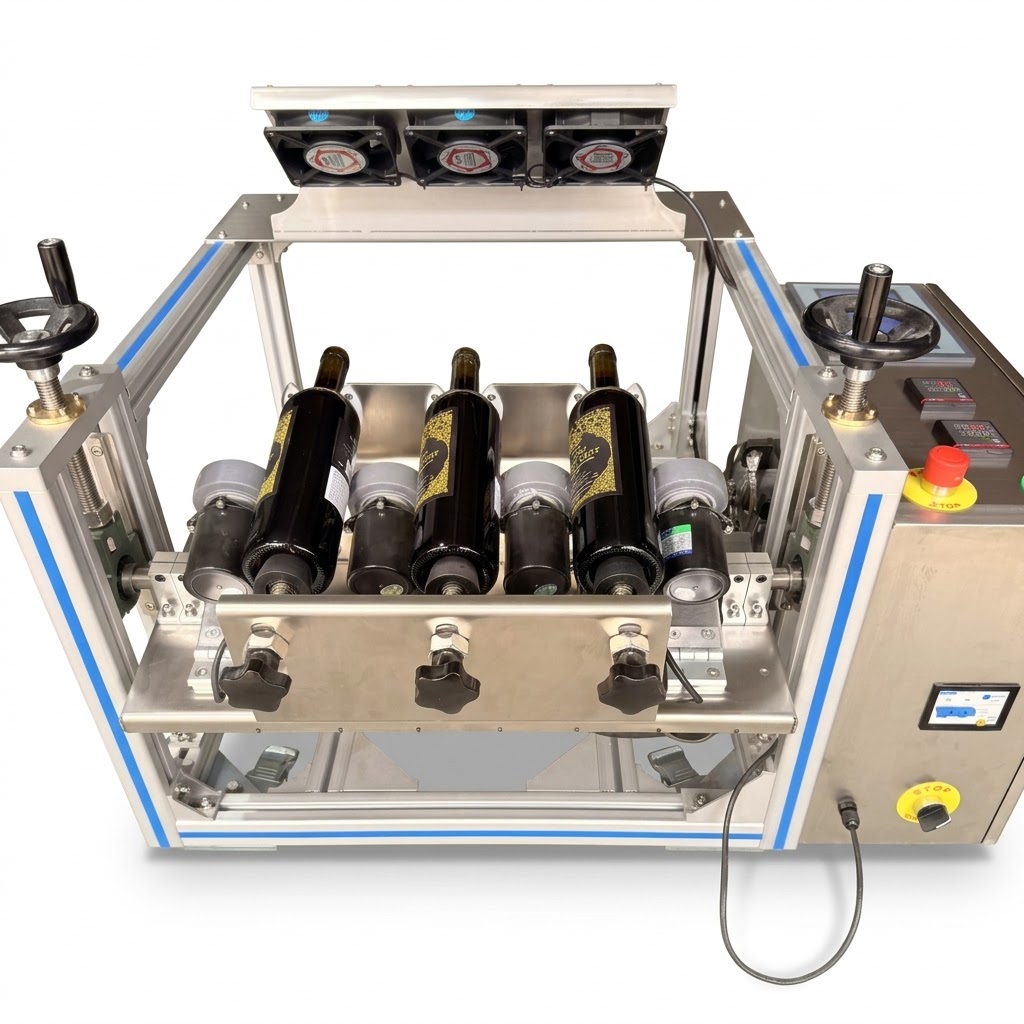

DMHA-LF30 Automatic Glass Bottle Wax Sealing
Model: DMHA-LF30
Applicable Products: 750ml wine bottle with a recessed base (customized based on the customer's products)
Applicable Bottle Diameter: 075-0100mm
Applicable Bottle Height: 260-360 mm (custom sizes available)
Sealing Wax Height: 20-60 mm (depending on the bottle shape; custom sizes available)
Working Speed: 350 bottles /hour (without seal) 160 bottles/hour (stamped) (related to bottlesize, wax particles, ambient temperature, environmental humidlity andoperational proficiency)
Number of Workstations: 3
Wax Consumption: Approx.6-8 g/piece
Voltage: 220V/50hz
Power: 5KW
Weight: 140KG
Dimension: 300x900x11100mm
Introduction
Designed for boutique wineries, craft distilleries, and medium-scale bottling operations, the DMHA-LF30 Automatic Wax Sealing Machine delivers precision and consistency without the footprint of a massive industrial line. This 3-station system automates the sealing of recessed-base glass bottles, providing a premium aesthetic finish while significantly reducing manual labor and material waste.
Key Features That Drive Results
Targeted Efficiency:
Featuring 3 dedicated workstations, the DMHA-LF30 bridges the gap between manual dipping and large-scale industrial lines, offering an optimized output rate perfect for specialty batches and medium production runs.
Premium Durability:
Constructed from high-grade SUS304 stainless steel and aluminum, the equipment is built for demanding environments. The reinforced arm design minimizes the load on the electric cylinder, drastically extending the service life of the machine.
Smart & Adaptable Operation:
An intuitive color touchscreen allows for seamless parameter adjustments. The system accommodates various wax types and ambient temperatures, offering customizable water-cooled or air-cooled solidification options based on facility requirements.
Fully Automated Workflow:
Eliminate human error with a complete, hands-off cycle: Wax Melting → Startup → Automatic Dipping → Automatic Shaping → Automatic Cooling → Completed.
Technical Specifications
⚙️Model: DMHA-LF30
⚙️Workstations: 3 efficient stations
⚙️Applicable Products: 750ml wine bottles with recessed bases (Fully customizable to your product)
⚙️Bottle Dimensions: Diameter Φ75-Φ100mm | Height 260-360mm (Custom sizes available)
⚙️Sealing Wax Height: 20-60mm (Customizable based on bottle shape)
⚙️Wax Consumption: Highly efficient at approximately 6-8 g/piece
⚙️Voltage: 220V/50Hz
Why Choose the DMHA-LF30?
The DMHA-LF30 is the strategic choice for businesses looking to upgrade from manual sealing to a standardized, automated process without over-investing in excess capacity. It ensures a flawless, high-end presentation for every bottle while maintaining strict operational cost control.
Customization Services: All our machines can be fully customized. We can engineer equipment to accommodate your specific bottle dimensions, workstation requirements, and production line layouts.
Contact us today to request a quote or discuss tailored machinery solutions for your facility!
