High-Performance Hydraulic Lifts: Built for Safety and Efficiency
850–1800mm hydraulic lift matches varying dock heights
100kg/m payload capacity on rigid carbon steel frame
0–30m/min variable speed with bidirectional operation
5-ton lifting thrust via dual-cylinder hydraulics
5.0mm high-friction PVC belt prevents cargo rollback
Full-length side baffles secure goods during steep transit
Description

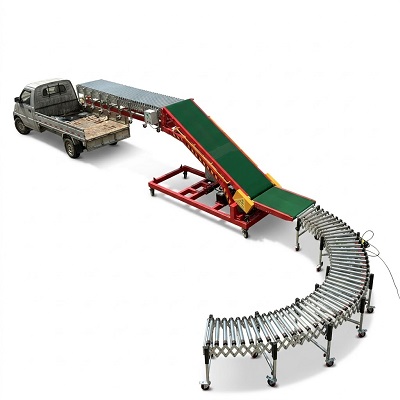

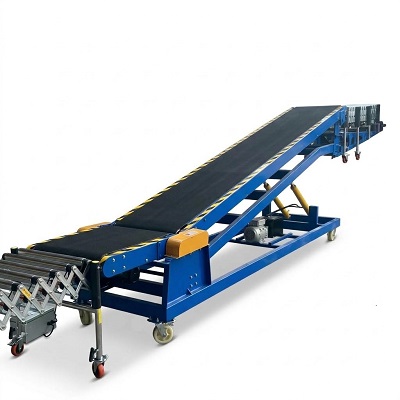

Loading operations stall when equipment can't bridge the height gap. The DMHA-BC600 and DMHA-BC800 hydraulic climbing conveyors are built to solve that specific problem in warehouse logistics and material handling. Powered by a 5-ton dual-cylinder hydraulic system and a heavily reinforced carbon steel frame, these units handle continuous, heavy-elevation transfers without buckling under payload stress.
Here are the hard specifications and functional details.
Core Specifications
⚙️Footprint & Reach: 4.8 meters overall. This breaks down into a 4000mm incline and an 800mm horizontal tail section for staging.
⚙️Working Width: 600mm—sized practically for standard shipping cartons and industrial components.
⚙️Structural Build: 3.0mm thick carbon steel for both the main line body and the keel. It is built heavy to absorb the stress of continuous loading.
⚙️Traction: 5.0mm thick grass-pattern PVC belt (PVK transmission). The aggressive surface texture provides the necessary friction to prevent cargo rollback on steep inclines.
⚙️Drive Unit: A 750W belt drive motor paired with an industrial frequency converter.
⚙️Hydraulics: A 2200W dual-cylinder setup delivering 5 tons of lifting thrust.
⚙️Payload Rating: 100 kg per meter.
How It Operates on the Floor
The design cuts out unnecessary complexities and focuses on operational control and safety:
Dial-in Elevation
The hydraulic system pushes the incline anywhere from 850mm to 1800mm. Instead of forcing your floor crew to adapt to awkward loading angles, you adjust the conveyor to meet the exact height of the truck bed or mezzanine.
Paced Flow
Operation is fully bidirectional. The speed is variable from 0 to 30 meters per minute. You can run it fast for clearing empty boxes or dial it down to safely pace 100kg loads.
Cargo Retention
Steep angles usually mean dropped freight. We combine the high-friction 5.0mm PVC belt with solid, full-length side baffles to ensure the cargo actually stays on the line from bottom to top.
No-Nonsense Controls
A single centralized control box houses everything the operator needs: start/stop, directional swap, speed dial, hydraulic lift/lower, and the emergency kill switch.
Where It Fits
Dock Operations: The 850mm–1800mm lift range is specifically calibrated to match standard flatbeds, box trucks, and shipping containers. It eliminates the manual lifting bottleneck at the bay door.
Logistics Sorting: The variable speed and reverse functions allow facilities to route parcel flow dynamically between ground-level sorting areas and raised distribution platforms.
Manufacturing Facilities: The 100kg/m load rating and rigid carbon steel frame allow it to act as a hard-wearing transfer link between staggered assembly stations, handling raw materials without flexing.
Need to Verify Specs for Your Floor?
Stop losing time and labor at the loading bay. Contact DAAP Machinery to get current pricing, request technical drawings, or confirm if the DMHA-BC600/800 matches your specific footprint and payload requirements.
