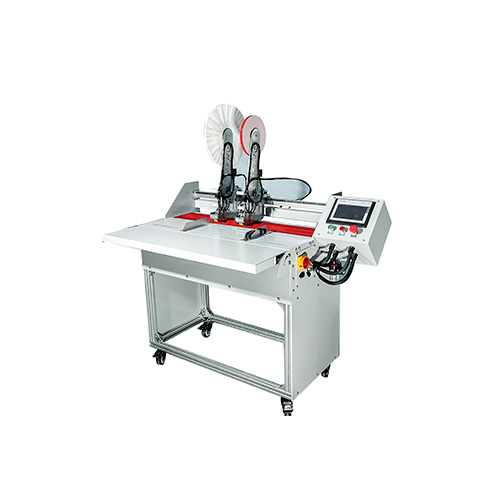

Adhesive Tear acrylic eva PP 3M Foam double sided tape Applicator machine for cardboard paperboard kraft paper board

  • Adhesive Tear acrylic eva PP 3M Foam double sided tape Applicator machine for cardboard paperboard kraft paper board
Adhesive Tear acrylic eva PP 3M Foam double sided tape Applicator machine for cardboard paperboard kraft paper board

Adhesive Tear acrylic eva PP 3M Foam double sided tape Applicator machine for cardboard paperboard kraft paper board

  • Category: Double sided tape application machine
  • Views:326
  • Automatic Grade:Semi-automatic
  • PLC Language:English, Spanish,Russia
  • Machine speed:30m/min
  • Max product width:90-1060mm
  • Product description:Adhesive Tear acrylic eva PP 3M Foam double sided tape Applicator machine for cardboard paperboard kraft paper board
  • INQUIRY

Adhesive Tear acrylic eva PP 3M Foam double sided tape Applicator machine for cardboard paperboard kraft paper board


Main performance and features:


1,Used for applying the double sided tape ,sealing tape and PVC tape on the envelope ,A4 paper ,carton box ,PVC material ,decoration material and so on .


2,It is widely used in  building materials, packaging, printing and many other industries


3,Instead of manual operation,and saving the labor force.


4,It is light and flexible,convenient to move, PLC programming, touching screen, operation simple.


5,With an adjustable feeding table and ability to load sheets up to 142x100cm it is the perfect machine for small scale work.


Specification :


Model
DMHA-1060
Max product width
90-1060mm,
Machine speed
32m/min
PLC Language
English, Spanish,Russia
Electrical need
110-220V,50HZ
Application Material
Envelope ,A4 paper ,carton box ,PVC material
Max material thickness
20mm
Max number of spots in line
4
Min tape length
35mm
Min distance between application and the next
25mm
Internal diameter roll tape
76mm
Tape width
4mm up to 33mm
Tape applicator/taping head
1,2,3 or 4
Minimum Product Thickness
80gsm
Weight
120kg
Dimension
1530x1030x1520mm (L x W x H)
Warranty:
12 Months
